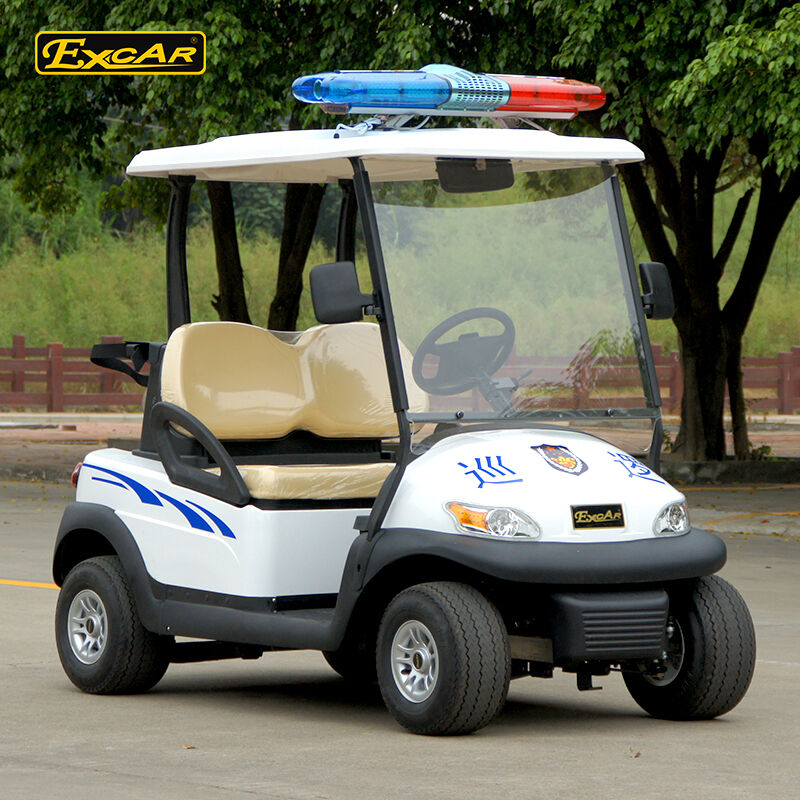

Electric Patrol Car With Alarm Lamp

Electric Patrol Car With Alarm Lamp
Electric Patrol Car With Alarm Lamp Electric Patrol Car With Alarm Lamp Electric Patrol Car With Alarm Lamp Electric Patrol Car With Alarm Lamp

Large Image :  Electric Patrol Car With Alarm Lamp

Product Details:

Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , carton paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Detailed Product Description
Transaxle: Italy Graziano Axle Warranty: 1 Year
Production Time: 7-15 Days After Deposit Paid Body Color: White Or Based On Panton Number
Tyre: 205/50-10 Tyre Chassis: Aluminum Material
Brand: EXCAR Climbing Capacity: 30%
High Light:

electric patrol vehicle

,

electric police car

EXCAR White 2 Seats Electric Patrol Car 48V Trojan Electric prowl car With Alarm Lamp



Feather of golf cart:



Battery 6*8V 275AH Trojan T-875
Power of Motor 48V 3700W
Controller American Curtis Electronics Controller
Accelerator Adjustable Inductive Accelerator Continuously Variable Speed System
Transaxle Italy Graziano axle
Charger Intelligent Onbaord Charger
Chassis configuration
Front-Suspension Independent Spring Front Suspension
Rear-Suspension Spring Hydraulic Shock Absorbers
Steering Dual Self Adjusting "Rack&Pinion" Steetring
Brakes Rear Wheel Mechanical Drum Brake and Regeneration Brake
Performance
Max Speed 25 km/h Chassis Aluminum
Max Travel Distance 70-90km Wheelbase 2490mm
Slope Climbing Capacity 30% Front Wheel Tread 860mm
Brake Range ≤3m Rear Wheel Tread 970mm
Max Noise <50dB Tires 205/50-10
Carrying Capacity 600KG Dimension 3500*1200*1900mm
Turning Radius 2900mm Passengers 6 Person
Net Weight 630kg Ground Clearance 124mm





Performance



system DC system AC system
Passenger Capacity 6 6
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 360kgs 360kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m



1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;



2) Range will vary depending on temperature, grade, payload and driving style.





Option Accessories



Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer


Packing & Shipping



Model Dimension(mm) 20” container 40” container
A1S2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
2641*1219*1727 2641*1219*1250 4 units 8units 10units 20units






Color options

Electric Patrol Car With Alarm Lamp 0



Product Image



Electric Patrol Car With Alarm Lamp 1

Electric Patrol Car With Alarm Lamp 2

Electric Patrol Car With Alarm Lamp 3
