EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis

Certification
China Dongguan Excar Electric Vehicle Co., Ltd certification
China Dongguan Excar Electric Vehicle Co., Ltd certification
Customer Reviews
After testing we think EXCAR golf carts' quality is really very good. So we like EXCAR carts and choose to cooperate with them!

—— Mr. Brian Ong

EXCAR is very professional and reliable supplier for us. We've cooperated for 7 years. They provide very good technical support, this helps us a lot!

—— Mr. Christophe Sarry

Excar's service and product gave me surprise, they did so well for all things. Choose to cooperate with them is a right choice.

—— Mr. Kurt

I'm Online Chat Now

EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis

EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis
EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis

Large Image :  EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis

Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H2/EC

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Detailed Product Description
Body Color: Red, Or Can Be Customized Roof Color: White,black And White
Seat Color: White,black And White Controller: Curtis Controller 48V 275A
Motor: ADC 48V 3.7KW Brand: EXCAR
Dimension: 2700*1200*1900 MM Chassis: Aluminum Chassis
High Light:

medical golf cart

,

emergency golf carts

EXCAR Production Rec Two Seats Electric Ambulance Car 3.7KW 48V Trojan Battery Ambulance Car





Basic specification



Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator



Performance


Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km
Charging time 8-10 hours 8-10 hours
Max.loading weight 360kgs 360kgs
Min.turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m




 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.


Dimensions


Item Description
Overall dimensions (L x W x H) 3400x1200x1800mm
Ground clearance 114mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm



Body and Frame


Item Description
Frame & Chassis Aluminum alloy beam, bended
Body PP engineering plastic front and rear body cover, injected
Roof Glass fiber reinforced plastic
Windshield Organic glass (PMMA),one-piece or two pieces
Roof supports Imbedding black coating steel tube in the plastic support
Cushion Reborn sponge with artificial leather and plastic bottom cover
Backrest Reborn sponge with artificial leather and plastic cover
Armrest Plastic
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel



Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.


Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer



Poduct Image:

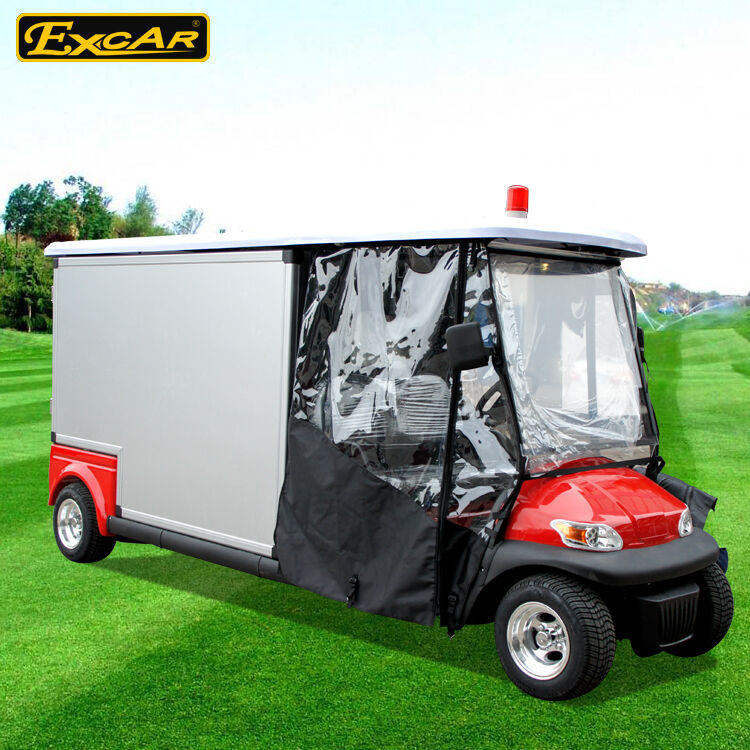

EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis 0
EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis 1

EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis 2

EXCAR A1H2 / EC Emergency Golf Carts With Closed Cargo Bed Aluminum Chassis 3





FAQ

1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.What is your lead time for production?
The typical lead time of our cart is 15 days.

4.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.

5.What's your payment term?
T /T 30% deposit and balance paid before shipment
