Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle

Certification
Good quality Electric Golf Car for sales
Good quality Electric Golf Car for sales
After testing we think EXCAR golf carts' quality is really very good. So we like EXCAR carts and choose to cooperate with them!

—— Mr. Brian Ong

EXCAR is very professional and reliable supplier for us. We've cooperated for 7 years. They provide very good technical support, this helps us a lot!

—— Mr. Christophe Sarry

I'm Online Chat Now

Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle

China Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle supplier
Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle supplier Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle supplier Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle supplier Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle supplier

Large Image :  Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle

Product Details:

Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1H2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Contact Now
Detailed Product Description
Motor: ADC 48V 5KW Acim Controller: 350A USA Curties
Battery: 48V Trojan Battery 6*8V Brand: EXCAR
Chassis: Steel Chassis Transaxle: Italy Graziano Axle
Dimension: 4000*1200*1900 MM Range: 40-60 KM

Aluminum Two Seats White 5KM 48V Trojan Electric Food Cart Electric Loading Golf Cart



Configuration



Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator




Performance


Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km





Electric System



Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),

Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock





Dimensions


Item Description
Overall dimensions (L x W x H) 4000x1200x1900mm
Ground clearance 114mm
Wheelbase 3300mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm





Option Accessories



To increase the sales value of our golf cart, we also provide many optional accessories

.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer






Packing & Shipping



Model Dimension(mm) 20” container 40” container
A1S2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
2641*1219*1727 2641*1219*1250 4 units 8units 10units 20units






Color options



※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number

※ Seat Color:Black or Beige

※ Roof Color:Black,White or Beige



Product showroon

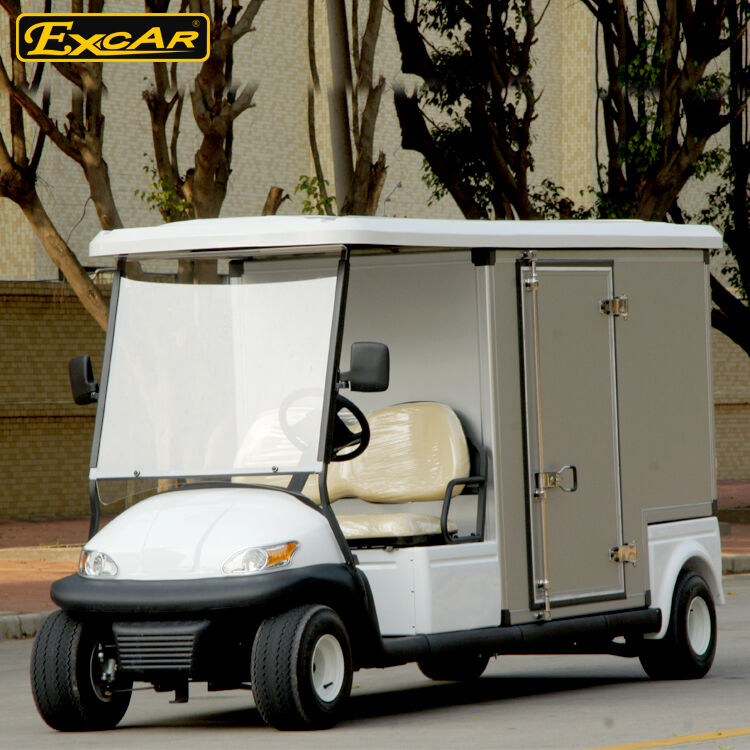

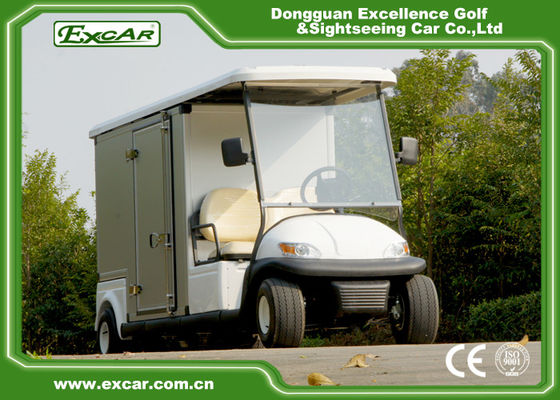

Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle

Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle
Aluminum 2 Person Golf Cart Beverage Cart With Italy Graziano Axle





Service



1.For all your inquires about us or our products, we will reply you in detail within 24 hours.



2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.



3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
