Product Details:
Payment & Shipping Terms:
|
| Roof Color: | Blue,White Or Beige | Seat Color: | White,black Or Beige |
|---|---|---|---|
| Warranty: | 1 Year | Controller: | USA Curties Controller 350A |
| Brand: | EXCAR | Chassis: | Aluminum Material |
| Climbing Capacity: | 25% | Motor: | KDS 72V 7.5KM |
| Range: | 60-80KM | ||
| High Light: | electric tour bus,electric shuttle bus |
||

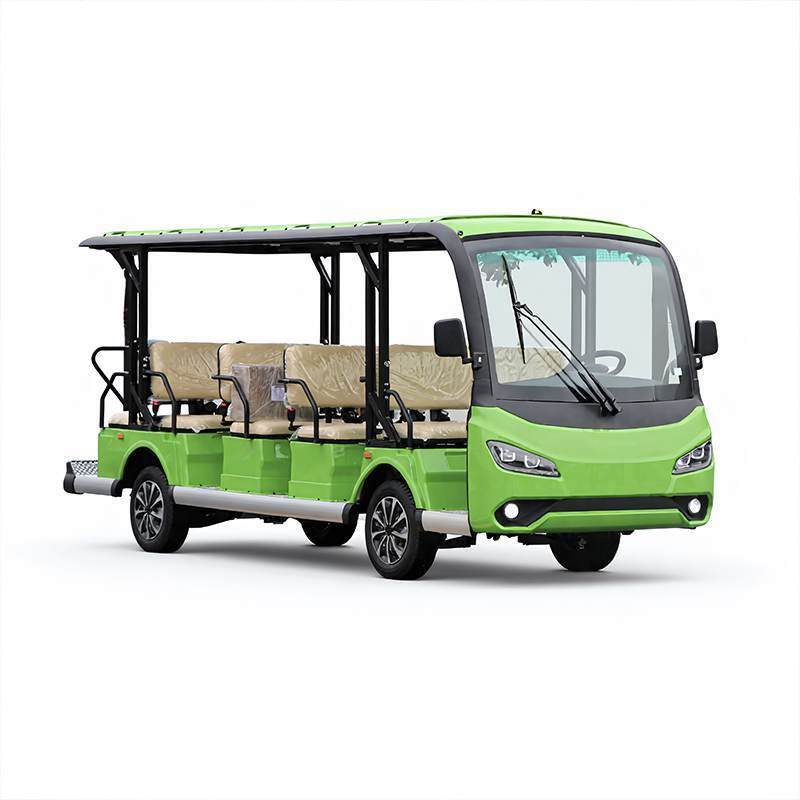

EXCAR Aluminum 14 Seater electric sightseeing bus tour bus new electric shuttle bus
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
| Motor | DC72V/5kw,DC |
| Controller | 72V500A(curtis 1205) |
| Charger | 72V25A full automatic high frequency charger |
| Max. Speed | 28-35km/h |
| Max.travelling range | 80-100km |
| Climbing capactity | 25% |
| Brake Range | 6.5 |
| Minmum turning radius | 6.5m |
| Gross Weight | 1250kg |
| Carrying capacity | 1000kg |
| Steering | Rack & Pinion |
| brakes | Four wheels hydraulic braking system & independent parking brake |
| Standard parts | Front and rear lights, Rear view mirrors Speedometer,Wiper |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1H2/CC | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3400*1200*1900 | 3400*1200*1200 | 2 units | 4units | 6units | 12units | |
Product Image
FAQ
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
