Product Details:
Payment & Shipping Terms:
|
| Body Color: | Blue Or Do On Pantone Number | Roof Color: | White,black And White |
|---|---|---|---|
| Seat: | 2 Person | Motor: | ADC Motor |
| Controller: | Curties Controller 48V 275A | Batteries: | Trojan Battery 48V |
| Transaxle: | Italy Graziano Axle | ||
| High Light: | electric golf club cart,club car golf carts |
||

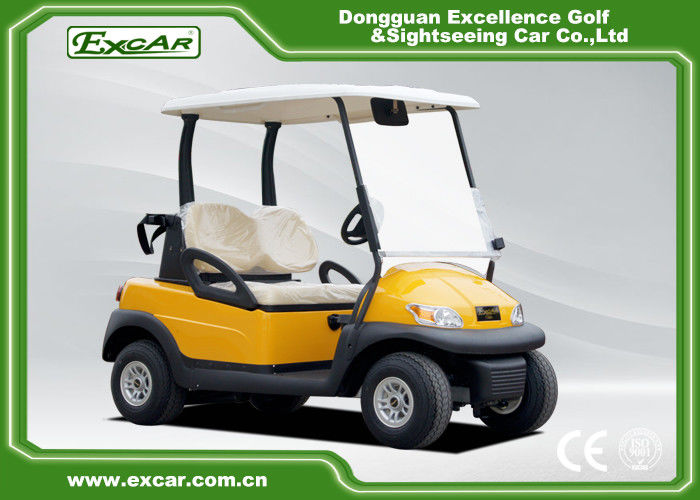

EXCAR 2 Seater Aluminum Chassis 3.7KW Motor Electric Powered Golf Carts
※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator
Specification
| Configuration | |||
| Battery | 6*8V 275AH Trojan T-875 | ||
| Power of Motor | 48V 3700W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 25 km/h | Chassis | Aluminum |
| Max Travel Distance | 80-100km | Wheelbase | 1670mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 600KG | Dimension | 2700*1200*1900mm |
| Turning Radius | 2900mm | Passengers | 2 Person |
| Net Weight | 430kg | Ground Clearance | 124mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
