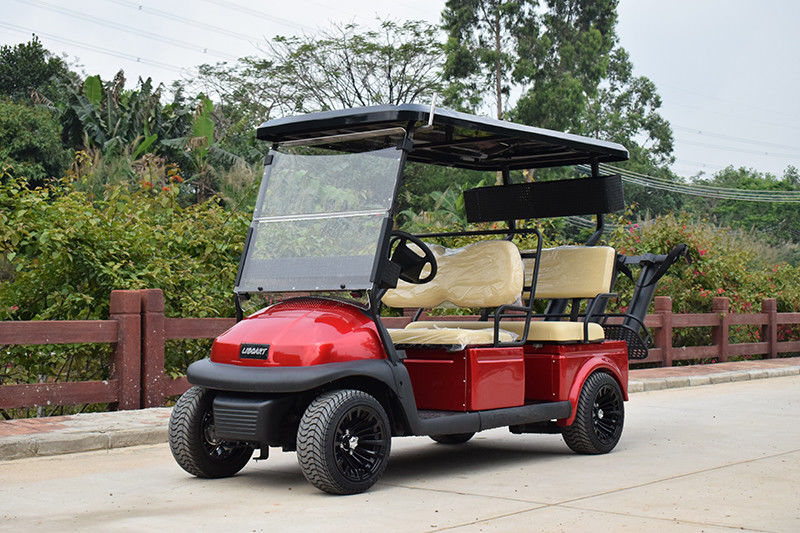

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest
KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest

Large Image :  KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest

Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1D4

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4100-4500/per unit
Packaging Details: roof move-off packing / packed by plastic foam & plastic film / QTY 4units-20" GP / QTY 12 units-40"HQ
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 400 units/per month
Detailed Product Description
Product Name: Electric Golf Cart Application: Outdoor
Dimension: 3100*1200*1700mm Standard: CE
Battery: Lead Acid Battery Or Lithium Battery 48V Motor: KDS Brand
Controller: Curtis 350A Size Of Tire: 8 / 10 / 12 Inch
HS Code: 87031019
High Light:

club car golf carts

,

electric powered golf carts

New design 4-person electric golf cart club electric buggy with CE certification

Quick View:

Excar electric golf carts is an ideal substitute toolf for walking.

It can be driven by simply stepping on the "GO" pedal or "STOP",which means that older people could also master the driving skills quickly.

Our first-introduced Dual-Braking system which combined of EMB and mechanical brake system doubles driving safety factor and improves operating reliability.





Product Introduction:



A1D4 is our new models for golf course. Lead acid battery or lithium battery pack are optional.



Features of A1D4:



1. Seven colors available: Gentleman black / sea blue / Bright yellow / Mysterious purple / and so on.

2. Reliable product with ISO quality control process.

3. CE approved

4. Good corrsion-resistant design.

5. High strength aluminum chassis.

6. LED front lights,rear lights and horn.

7. WIde and soft seat bottom and backrest.

8. Stiff PC material endure a serious clash.



Applications: Golf course / Center park / Real estate industry



KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 0

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 1

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 2

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 3

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 4

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 5





Specifications:



Dimension 3100*1200*1700mm F/R Track 900/1000mm
Wheelbase 2490mm Ground Clearance 114mm
Min.Turning Radius 2.9m Net Weight 500KG
Pay Load 360KG Max.Forward Speed 25KM/h
Climbing Capacity 20% Range 50-70KM



Description:



Framework/Chassis: made of aluminum avoiding being eroded and less weight.Steel support provides large tenacity and anti-break.



Batteries: Adopted stable Trojan T-875 batteries from USA. Another optional is  lithium battery pack with power of 48 Voltage supply more energy and lasting more time.



Motor: 48V 5 horsepower separately excited motor from KDS,with the feature of low noise and strong power.



Body: The whole body is made of engineering plastic,which helps lighten the electrical golf cart and made the cart looks beauty.



Packing & Shipping:



a) LCL shipment Packing:

roof move-off packing, steel frame , cartoon paper cover.

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 6

b) FCL shipment Packing:

packed by plastic foam & plastic film



Container Capacity Remove roof,windshield with roof & windshield
Qty/20'GP 4units 2units
Qty/40'HQ 12units 6units

KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 7

Certificate:



KDS Motor 4 Person Golf Cart WIde And Soft Seat Bottom And Backrest 8



FAQ:

Q: Are you manufacturer?

A: Yes, we are directly manufacturer.We have a strong R&D team to provide OEM & ODM service.

Q: What kind of payment do you accept?

A: Currently we accept T/T,L/C.For other ways of payment terms,please kindly consult us for details,we will judge accordingly.
