Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Detailed Product Description
Motor: ADC Motor Controller: Curties Controller 48V 275A
Batteries: Trojan Battery Charger: Intelligent Onboard Charger
Transaxle: Italy Graziano Axle Warranty: 1 Year
Lead Time: 15 Days
High Light:

2nd hand golf carts

,

used 6 passenger golf cart

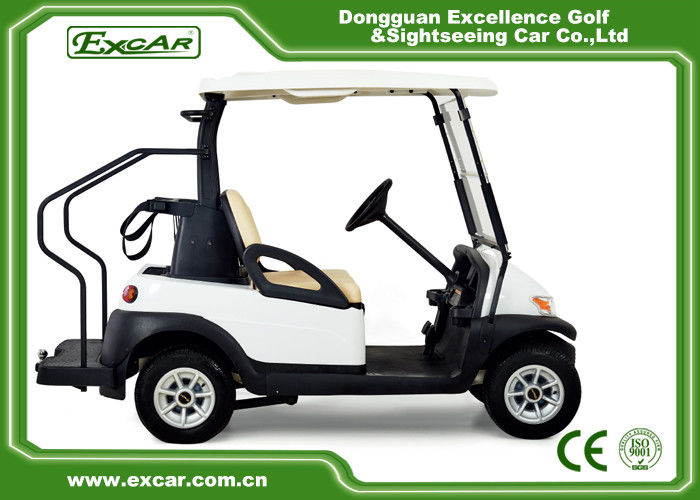

CE Approved Electric Used Golf Carts With Trojan Batteried Curtis Controller



Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds

Excar Used golf cart with the same parts as Club Car,listed as below

1, Aluminum chassis
2, Enpower charger
3, Rear drum brake
4, ADC motor 48V 6pcs*8V
5, Curties controller



Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator



Performance


Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km
Charging time 8-10 hours 8-10 hours
Max.loading weight 360kgs 360kgs
Min.turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m



* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.


Dimensions


Item Description
Overall dimensions (L x W x H) 2641x1219x1727mm
Ground clearance 114mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm



Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer



Packing & Shipping

Excar golf cart will be packed in steel crate

Model Dimension(mm) 20” container 40” container
A1S2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
2641*1219*1727 2641*1219*1250 4 units 8units 10units 20units





Product details

CE Approved Electric Used Golf Carts With Trojan Batteried Curtis Controller 0

CE Approved Electric Used Golf Carts With Trojan Batteried Curtis Controller 1

CE Approved Electric Used Golf Carts With Trojan Batteried Curtis Controller 2




FAQ:



1, what's your warranty time?

     Usually for 1 year



2, What's the production time?

     Normally for 7-15 working days



3, What's your payment term?

    T/T 30% deposit and balance paid before shipment



4, Can we also purchase the parts?

     Yes,if you do maintainess service,you can also buy parts from us



5, How do you provide after-sales once customer bought the cart from us?

    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

    If you need,we can arrange our technist person to fly to your area and help you solve it.
