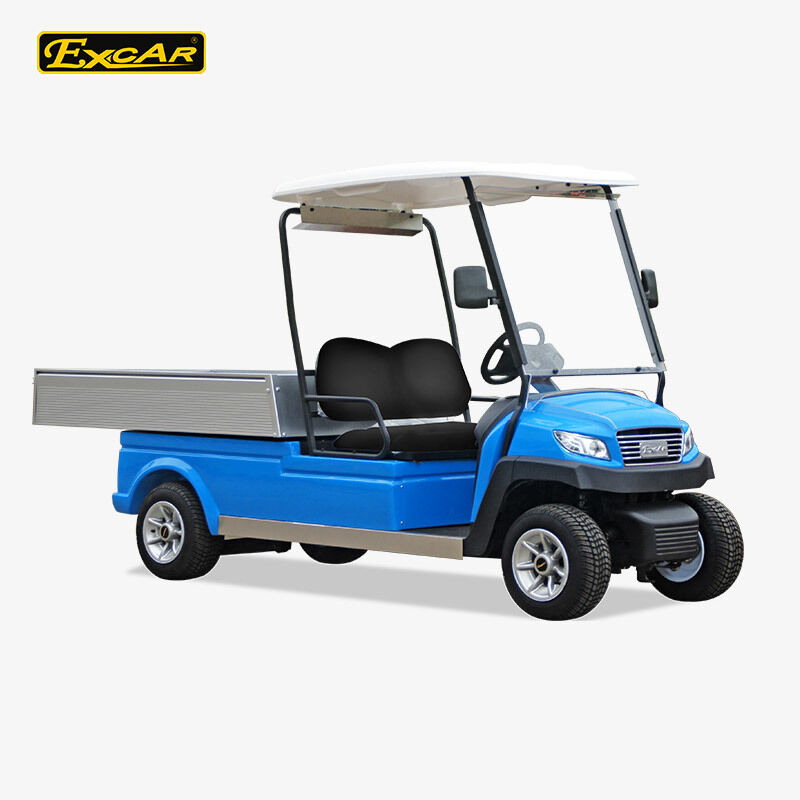

Blue ADC 48V 5KW Acim Electric Utility Carts

Blue ADC 48V 5KW Acim Electric Utility Carts
Blue ADC 48V 5KW Acim Electric Utility Carts Blue ADC 48V 5KW Acim Electric Utility Carts Blue ADC 48V 5KW Acim Electric Utility Carts Blue ADC 48V 5KW Acim Electric Utility Carts

Large Image :  Blue ADC 48V 5KW Acim Electric Utility Carts

Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: M1H2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Detailed Product Description
Motor: ADC 48V 5KW Acim Controller: 350A USA Curties
Battery: 48V Trojan Battery 6*8V Brand: EXCAR
Tyre: 205/50-10 Tyre Seat: Soft And Supported By Plastic Board
Wheel & Tyre: Aluminum Wheel & USA Carlisle 18*8.5-8 6 Layers Chassis: Aluminum Material
High Light:

electric utility car

,

utility golf carts

,

Acim Electric Utility Carts

Two seats Blue ADC 48V 5KW Acim Electric Utility Cart Electric Transport Golf Cart



Configuration



Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator




Performance


Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km



Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock




Option Accessories



To increase the sales value of our golf cart, we also provide many optional accessories

.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer






Product showroon

Blue ADC 48V 5KW Acim Electric Utility Carts 0
 Blue ADC 48V 5KW Acim Electric Utility Carts 1


Blue ADC 48V 5KW Acim Electric Utility Carts 2



FAQ

1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

4.What is your lead time for production?
The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.

6.What's your payment term?
T /T 30% deposit and balance paid before shipment
