Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE

Certification
Good quality Electric Golf Car for sales
Good quality Electric Golf Car for sales
After testing we think EXCAR golf carts' quality is really very good. So we like EXCAR carts and choose to cooperate with them!

—— Mr. Brian Ong

EXCAR is very professional and reliable supplier for us. We've cooperated for 7 years. They provide very good technical support, this helps us a lot!

—— Mr. Christophe Sarry

I'm Online Chat Now

Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE

China Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE supplier
Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE supplier Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE supplier Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE supplier Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE supplier

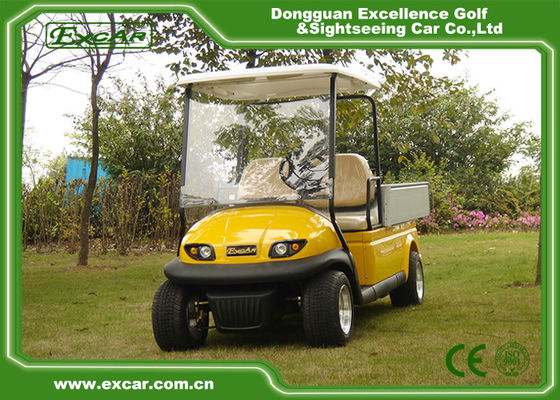

Large Image :  Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE

Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Contact Now
Detailed Product Description
Motor: 3.7KW ADC Brand Controller: 350A USA Curties
Battery: 48V Trojan Battery 6*8V Charger: 17A Regular
Transaxle: Italy Graziano Axle Tyre: 205/50-10 Tyre
Brand: EXCAR Seat: Soft And Supported By Plastic Board
F/R Track: 860 / 970 MM

Aluminium Electric Utility Carts Electric Food Cart With 48V Trojan Batteries For 2 passenger

Specification
The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.

This type of golf cart is becoming more and more popular, and we're selling very well over the country.

Configuration

Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator


Performance


Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km



Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock






Dimensions



Item Description
Overall dimensions (L x W x H) 3400x1200x1800mm
Ground clearance 114mm
Wheelbase 2260mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel


Color Options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

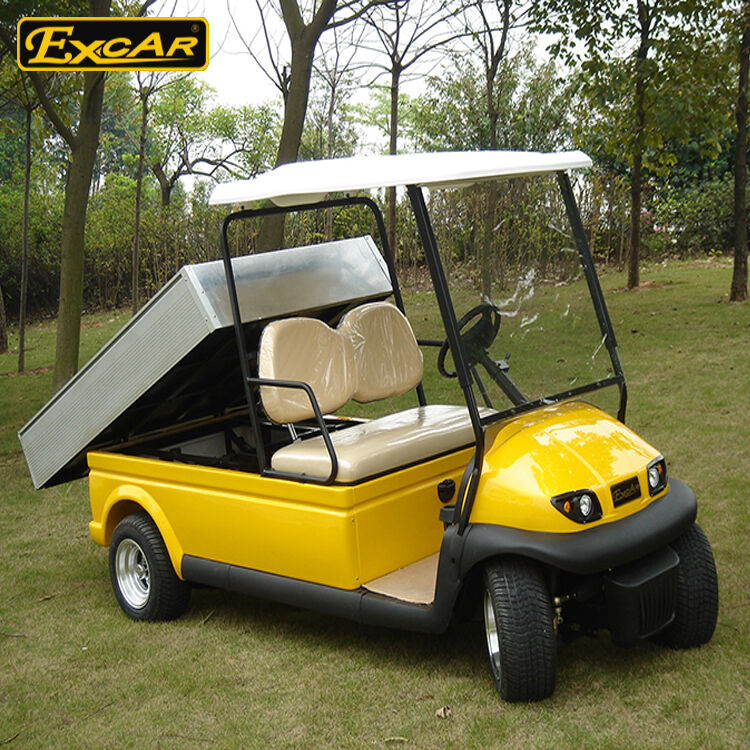

Product showroon

Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CEAluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE


Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE
 Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CEAluminium Electric Food Cart With Italy Graziano Axle 3.7KW CEAluminium Electric Food Cart With Italy Graziano Axle 3.7KW CEAluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE
 Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE



Aluminium Electric Food Cart With Italy Graziano Axle 3.7KW CE




FAQ

1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

4.What is your lead time for production?
The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.

6.What's your payment term?
T /T 30% deposit and balance paid before shipment
