Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: G1S14
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40' contianer
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
White,black Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Transaxle: |
Italy Graziano Axle |
Dimension: |
4500*1500*200 MM |
Brand: |
EXCAR |
Motor: |
KDS 72V 7.5KW |
Pay Load: |
850 KG |
Roof Color: |
White,black Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Transaxle: |
Italy Graziano Axle |
Dimension: |
4500*1500*200 MM |
Brand: |
EXCAR |
Motor: |
KDS 72V 7.5KW |
Pay Load: |
850 KG |

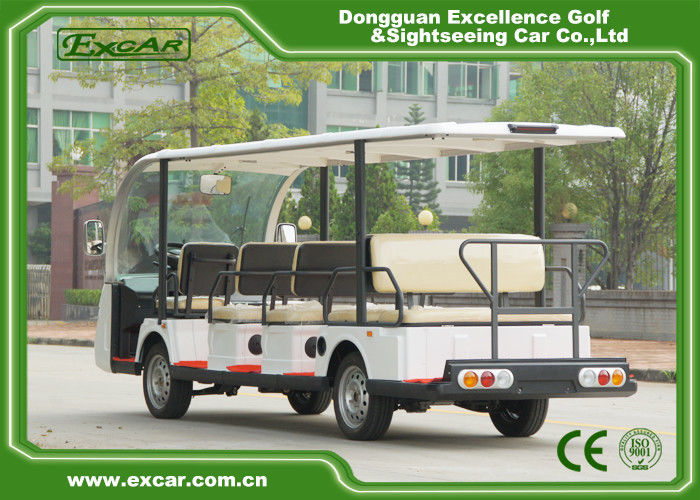

White 14 Person 48V Trojan Battery Electric Sightseeing Car Environmental Sightseeing Bus
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
