Product Details:
Payment & Shipping Terms:
|
| Body Color: | Red, Or Can Be Customized | Roof Color: | White,black And White |
|---|---|---|---|
| Seat Color: | White,black And White | Controller: | Curtis Controller 48V 275A |
| Motor: | ADC 48V 3.7KW | Dimension: | 2700*1200*1900 MM |
| Chassis: | Aluminum Chassis | Transaxle: | Italy Graziano Axle |
| High Light: | ambulance golf cart,emergency golf carts |
||

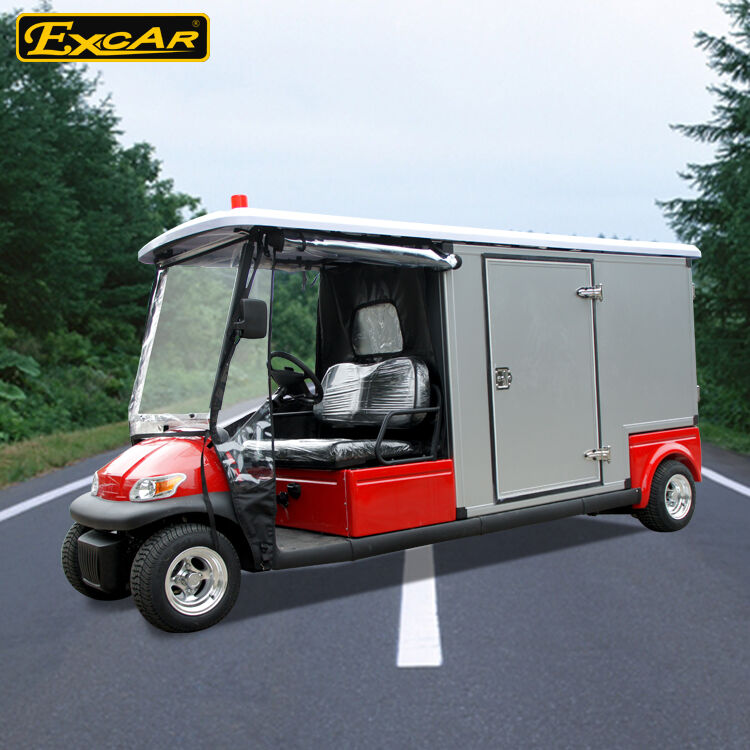

CE Approved Red Two Seats Electric Ambulance Car 3.7KW 48V Trojan Ambulance Car For Hospital
Basic specification
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited |
ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle |
Italian GRAZIANO axle |
| Charger |
High Frequency onboard charger |
High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 360kgs | 360kgs |
| Min.turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3400x1200x1800mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA),one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units |
|
Poduct Image:
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
4.We design the full waterproof accelerator,Global special LED system,and only our Excar use 16:1 Italy Graziano axle,so the quality can be gurantee
