Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1H2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Transaxle: |
Italy Graziano Axle |
Dimension: |
4000*1200*1900 MM |
Max.Forward Speed: |
23 KM/H |
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Transaxle: |
Italy Graziano Axle |
Dimension: |
4000*1200*1900 MM |
Max.Forward Speed: |
23 KM/H |

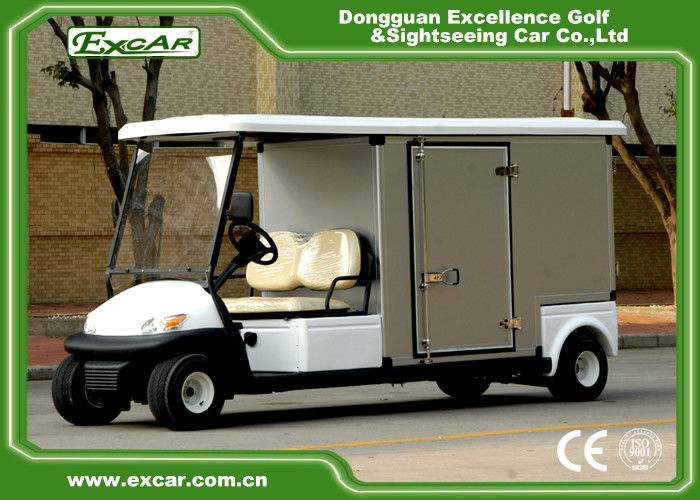

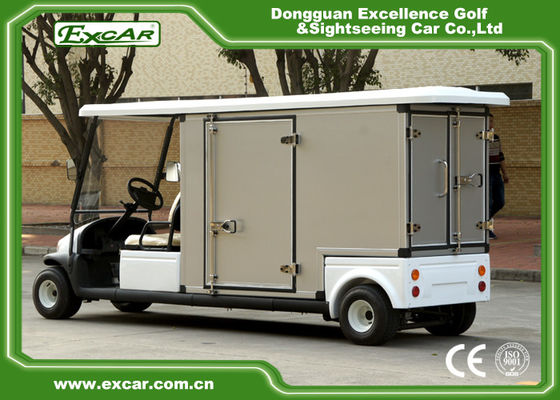

White Two Seats 5KM 48V Trojan Electric Food Cart Electric Golf Cart With Container
Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.
The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
Configuration
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited |
ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle |
Italian GRAZIANO axle |
| Charger |
High Frequency onboard charger |
High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 4000x1200x1900mm |
| Ground clearance | 114mm |
| Wheelbase | 3300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories
.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units |
|
