Payment & Shipping Terms:
|Body Color:||Yellow Or Customized||Roof Color:||White,black Or Beige|
|Seat Color:||White,black Or Beige||Warranty:||1 Year|
|Motor:||USA ADC Brand||Battery:||USA Trojan Battery|
vintage golf car,
electric vintage car,
ISO Approved Electric Classic Cars

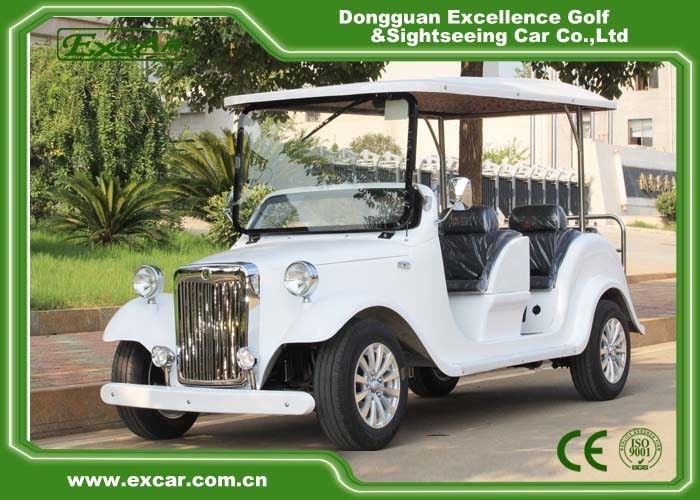

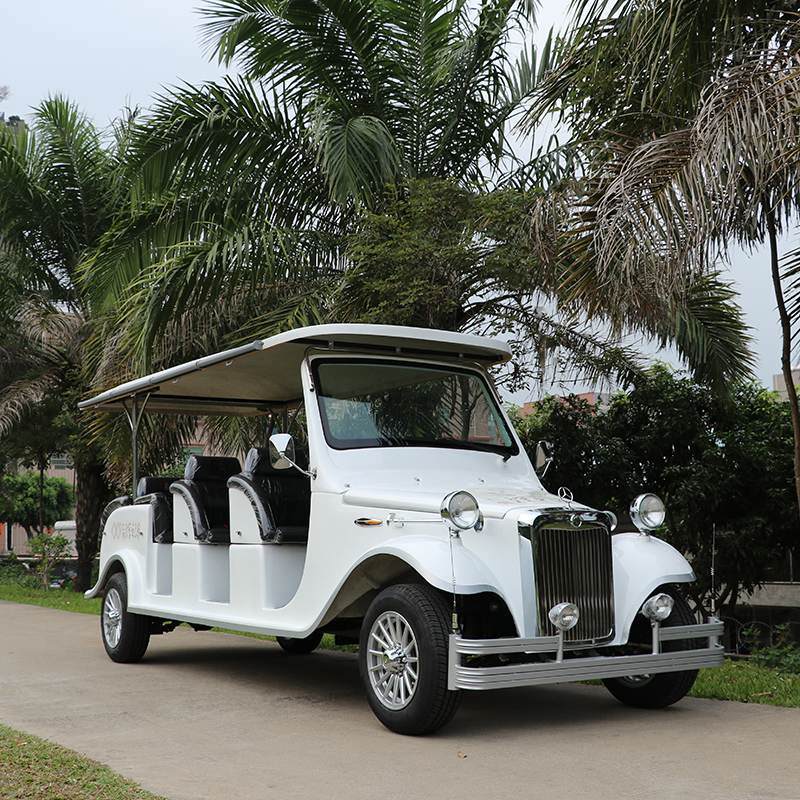

8 Passengers ISO Approved White Electric Classic Cars 72V Trojan Battery Electric Classic Bus
|Overall dimensions (L x W x H)||5100×1480×1960mm|
|Front wheel tread (mm)||1170mm|
|Rear wheel tread (mm)||1180mm|
|Climbing capacity(full load)||20%|
|Max. forward speed||24km/h|
|Charging time||8-10 hours|
|Max. loading weight||560kgs|
|Min. turning radius||5.5m|
|Max. movement after brake at speed of 20km/h||≤4m|
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
* 2) Range will vary depending on temperature, grade, payload and driving style.
|Controller||Curtis controller 275A, imported from USA directly|
|Battery||Free maintenance batteries 8V*6pcs|
|Motor||Separately excited DC motor 48V 3.7kw|
|Transaxle||Transaxle with gear ration 1:12|
|Charger||High Frequency onboard charger,48V/17A regulator|
Body and Frame
|Frame & Chassis||Steel alloy framework|
|Body||PP engineering plastic front and rear body cover, injected|
|Roof||Glass fiber reinforced plastic|
|Windshield||Organic glass (PMMA), one-piece or two pieces|
|Roof supports||Imbedding black coating steel tube in the plastic support|
|Cushion||Reborn sponge with artificial leather and plastic bottom cover|
|Backrest||Reborn sponge with artificial leather and plastic cover|
|Floor mat||Anti-skidding rubber|
Warranty : 1 year fully Warranty , offer electric classis cart FREE components under EXW shipped term.
Excar is established in 2006.
Our golf cart now become the No.1 choice for the golf course in China.
Excar possesses advanced facilities and owns a group of technicians to keep innovation
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Shipping & Package
|20' container||With windshield and roof||1 unit|
|40' container||With windshield and roof||2 units|
