Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S6
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum |
Climbling: |
30% |
Pay Load: |
360kg |
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum |
Climbling: |
30% |
Pay Load: |
360kg |

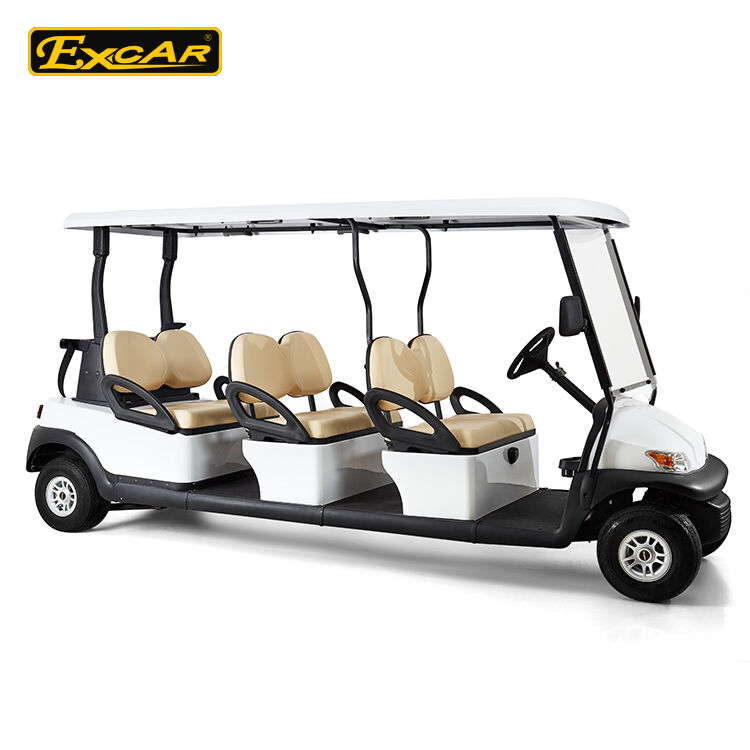

6 Seater Tourist Use Used Electric Golf Carts / Electric Sightseeing Bus Trojan Battery
Basic specification
Golf cart had become one of our major products in the recent years.As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
Feather of golf cart:
Battery | 6*8V 275AH Trojan T-875 | ||
Power of Motor | 48V 3700W | ||
Controller | American Curtis Electronics Controller | ||
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
Transaxle | Italy Graziano axle | ||
Charger | Intelligent Onbaord Charger | ||
Chassis configuration | |||
Front-Suspension | Independent Spring Front Suspension | ||
Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
Performance | |||
Max Speed | 25 km/h | Chassis | Aluminum |
Max Travel Distance | 70-90km | Wheelbase | 2490mm |
Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
Brake Range | ≤3m | Rear Wheel Tread | 970mm |
Max Noise | <50dB | Tires | 205/50-10 |
Carrying Capacity | 600KG | Dimension | 3500*1200*1900mm |
Turning Radius | 2900mm | Passengers | 6 Person |
Net Weight | 630kg | Ground Clearance | 124mm |
Performance
system | DC system | AC system |
Passenger Capacity | 6 | 6 |
Climbing capacity(full load) | 20% | 25% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 60-80km | 80-100km |
Charging time | 8-10 hours | 8-10 hours |
Max. loading weight | 360kgs | 360kgs |
Min. turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Color options
※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
※ Seat Color:Black or Beige
※ Roof Color:Black,White or Beige
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit,if your order qty is big then we can give you some discount
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What's your payment term?
/T 30% deposit and balance paid before shipment
Application
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
