Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: G1S8
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40' contianer
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
White,black Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 275A |
Motor: |
KDS 72V 7.5KM |
Chassis: |
Aluminum Material |
Charging Time: |
8-10 Hours |
Climbing Capacity: |
25% |
F/R TRACK: |
1210 / 1200 MM |
Brand: |
EXCAR |
Roof Color: |
White,black Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 275A |
Motor: |
KDS 72V 7.5KM |
Chassis: |
Aluminum Material |
Charging Time: |
8-10 Hours |
Climbing Capacity: |
25% |
F/R TRACK: |
1210 / 1200 MM |
Brand: |
EXCAR |

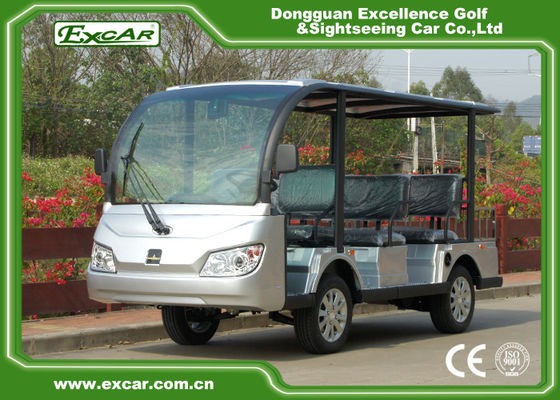

Silver 72V 7.5KM Motor 8 Seater Electric Sightseeing Car With Storage Basket
The main performance and design parameters are as follows:
| No | item | unit | Design value | |
| 1 | Rated load(including driver) | person | 8 | |
| 2 | Maximum speed | No load | km/h | 40 |
| Full load | 38 | |||
| 3 | Vehicle weight | kg | 1000 | |
| Vehicle load | 750 | |||
| 4 | Dimension | mm | 3950*1500*2000 | |
| 5 | Cargo bar size | 1390*540*320 | ||
| 6 | Minimum ground clearance | No load | 170 | |
| Full load | 150 | |||
| 7 | Wheelbase | Left | 2100 | |
| Right | 2100 | |||
| 8 | Wheelbase | Front | 1210 | |
| Rear | 1200 | |||
| 9 | Ground clearance | 170 | ||
| 10 | Min.turning radius | m | 4.3 | |
| 11 | Approach angle | ( ° ) | 18 | |
| Passing angle | 18 | |||
| Departure angle | 20 | |||
| 12 | Braking distance(no load/full load) | m | 5.0/6.0 | |
| 13 | Maximum driving slope | % | 18 | |
| 14 | Maximum grade ability | % | 25 | |
| 15 | Motor rated power | kW | 7.5 | |
| 16 | Lowest point on upper surface of passenger seat (H point) | mm | 800 | |
| 17 | Wheel number of shuttle bus | unit | 4 | |
| 18 | Range | km | 60-80 | |
Main components, safety protection and protective devices
| No | item | Description | |
| 1 | Motor | Model / serial number | YDQ7.5-4-5680/180825038 |
| Insulation grade / Exciter type | H/AC | ||
| Level of protection | 1P54 | ||
| Rated power / Rated speed | 7.5kW/5100r/min | ||
| Rated current / Rated Voltage | 141A/72V | ||
| manufacturer | Kinetek DeSheng(Shunde,Foshan)Motor Co.,Ltd | ||
| 2 | Lithium battery | Rated current / Rated Voltage | 160Ah/72V |
| Model / manufacturer | EX-768160/Dongguan new road power Technology Co. , LTD | ||
| 3 | Controller | Model / serial number | 123E-6322/1234E-6322-012431 |
| Rated voltage/rated current | 60-72V/300A | ||
| manufacturer | Curtis Instruments (China) Co., Ltd | ||
| 4 | Charger | type | on-board charger |
| Rated voltage/rated current | 72V /30A | ||
| Model/manufacturer | CH4100/Zhuhai Enpower Electric Co.,Ltd. | ||
| 5 | Front suspension | Type | McPherson independent suspension |
| 6 | Rear suspension | Type | Spiral spring hydraulic shock absorbing structure |
| rear axle | Heavy duty axle with differential gear | ||
| Rear axle reduction ratio | 18 | ||
| Manufacturer | Dongguan lingyue transmission co. Ltd | ||
| 7 | Brake | Brake type | Double pipe with hydraulic brake system |
| Model /Manufacturer | N300/Zhejiang Asia-Pacific Mechanical & Electronic Co., Ltd. | ||
| 8 | Tyre | Front tire pressure / Rear tire pressure | 0.35Mpa/0.35Mpa |
| Model / Manufacturer | 175/70R14/Tianjin Wanda Tyre Group Co Ltd | ||
| 9 | safety belt | model / Manufacturer | 18060501/Kunshan jialiya auto parts co. LTD |
| 10 | Body cover | Type | ABS plastic |
| 11 | windshield | Model /Material/ Manufacturer | 43R-001874/laminated glass/Xinyi Glass Engineering (Dongguan) Co., Ltd |

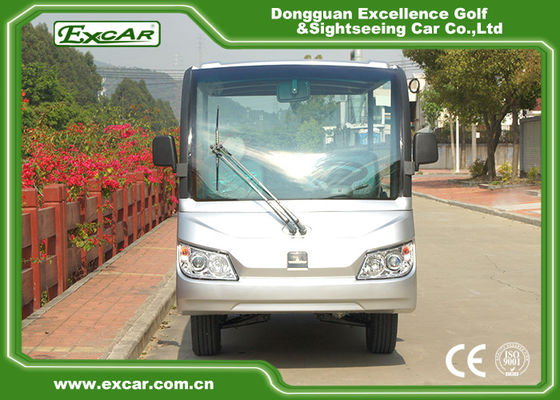

Product picture
