Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S4+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: $4300-4600/per unit
Packaging Details: roof move-off packing / packed by plastic foam & plastic film / QTY 4units-20" GP / QTY 12 units-40"HQ
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 400 units/per month
Product Name: |
Electric Golf Cart |
Application: |
Outdoor |
Dimension: |
3454*1219*1828mm |
Brand: |
EXCAR |
Battery: |
Lead Acid Battery Or Lithium Battery 48V |
Motor: |
KDS Brand |
Controller: |
Curtis 350A |
Size Of Tire: |
8/10/12 Inch |
Transaxle: |
ITALY GRAZIANO AXLE |
Charger: |
48V 17A REGULATOR |
Product Name: |
Electric Golf Cart |
Application: |
Outdoor |
Dimension: |
3454*1219*1828mm |
Brand: |
EXCAR |
Battery: |
Lead Acid Battery Or Lithium Battery 48V |
Motor: |
KDS Brand |
Controller: |
Curtis 350A |
Size Of Tire: |
8/10/12 Inch |
Transaxle: |
ITALY GRAZIANO AXLE |
Charger: |
48V 17A REGULATOR |

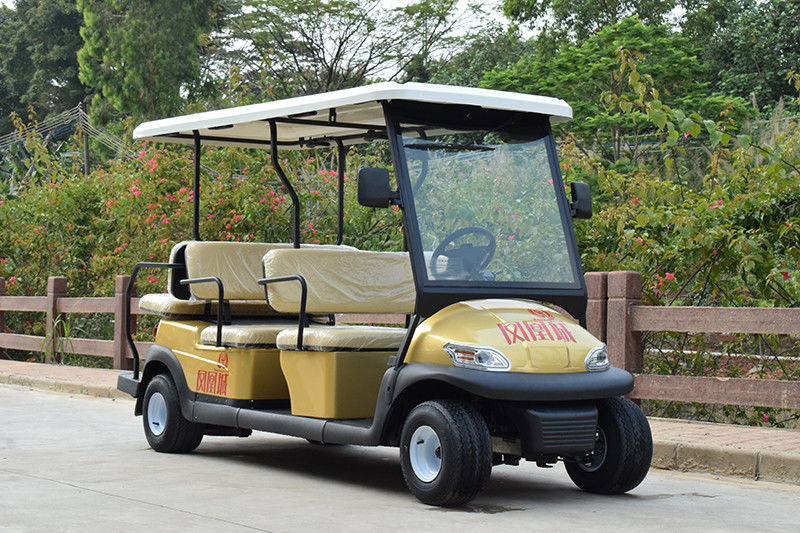

4 wheel drive 6 seat electric golf car with golden color / electrical golf buggy
Quick View:
Excar electric golf carts is an ideal substitute toolf for walking.
It can be driven by simply stepping on the "GO" pedal or "STOP",which means that older people could also master the driving skills quickly.
Our first-introduced Dual-Braking system which combined of EMB and mechanical brake system doubles driving safety factor and improves operating reliability.
Product Introduction:
A1S4+2 is our basic electrical utility models. Lead acid battery or lithium battery pack are optional.
Features:
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited DC motor 48V 3.7kw | ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle with gear ration 1:12 | Italian GRAZIANO axle with gear ration 1:16 |
| Charger | High Frequency onboard charger 48V/17A regulator | High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 3.9m | 3.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3454x1219x1828mm |
| Ground clearance | 114mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Applications: Golf Course / Center park / Real estate industry
Packing & Shipping:
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
| Container Capacity | Remove roof,windshield | with roof & windshield |
| Qty/20'GP | 4units | 2units |
| Qty/40'HQ | 12units | 6units |
Certificate:
1. Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2. What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3. Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4. What is your lead time for production?
The typical lead time of our cart is 15 days.
5. What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6. What's your payment term?
T /T 30% deposit and balance paid before shipment
