Product Details:
Payment & Shipping Terms:
|
| Framework: | Steel | Body: | All Engineering Plastic |
|---|---|---|---|
| Batteries: | Lead-acid Wet Batteries USA Trojan Batteries | Controller: | USA Curtis Controller 48V 275A |
| Steer System: | Self-adjusting Rack & Pinion | Front Suspension: | Independent Spring Suspension |
| Rear Suspension: | Coil Spring Hydraulic Shock Absorber | Motor: | ADC Separately Excited 48V 3.7w |
| Charger: | Onboard 17Ah Charger | Roof: | Composite Material |
| Transaxle: | Italian Transaxle 12:1 Or 16:1 | ||
| High Light: | electric shuttle car,electric passenger car |
||

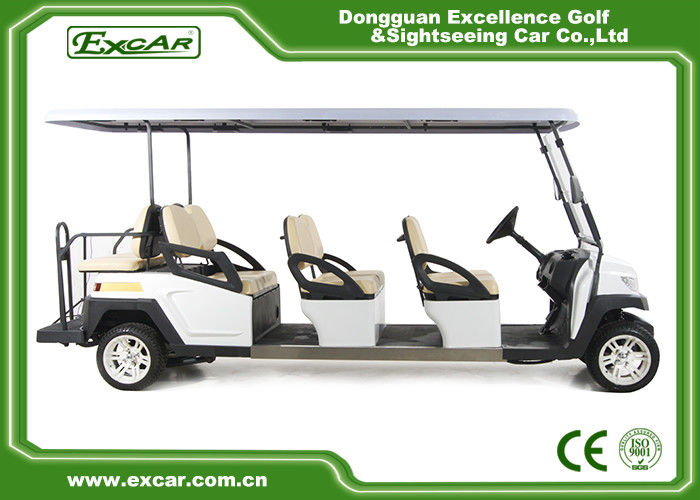

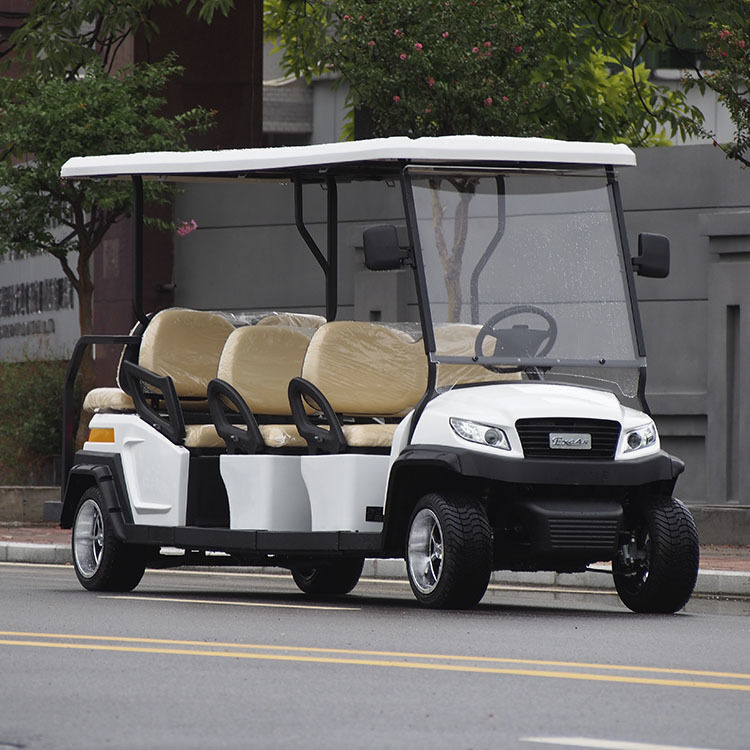

CE Certificate ISO Approved 48V Trojan Battery Sightseeing Car 8 Seater white Colour Electric Sightseeing Carts
Basic specification
| Item | Description |
| Overall dimensions (L x W x H) | 4000x1200x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 3300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 275A, imported from USA directly | Curtis controller 1234E-5321, 275A, imported from USA directly |

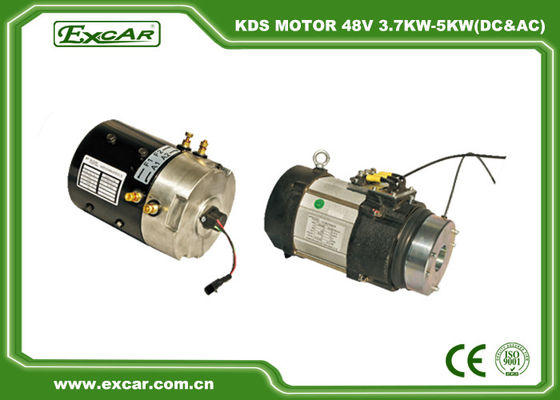

| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 8 | 8 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
