Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S2+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Chassis: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan T-875 |
Controller: |
USA Curtis Controller 48V 275A |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Chassis: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan T-875 |
Controller: |
USA Curtis Controller 48V 275A |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |

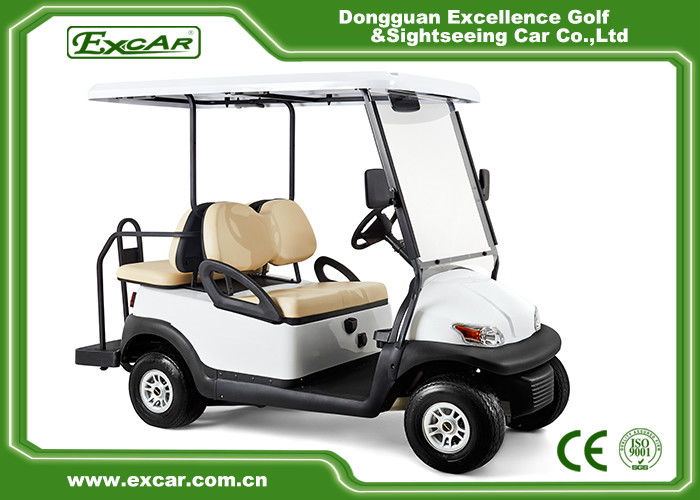

Excar 48V Trojan Battery Electric Golf Cart 4 Seater KDS Motor Electric Golf Carts
Basic specification
Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.
As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.
This type of golf cart is becoming more and more popular, and we're selling very well over the country.
Feather of golf cart:
Item | Description |
Overall dimensions (L x W x H) | 3200x1200x2000mm |
Ground clearance | 150mm |
Wheelbase | 1670mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Key Components
System | DC system | AC system |
Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
system | DC system | AC system |
Passenger Capacity | 4 | 4 |
Climbing capacity(full load) | 20% | 25% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 60-80km | 80-100km |
Charging time | 8-10 hours | 8-10 hours |
Max. loading weight | 300kgs | 300kgs |
Min. turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Application
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
