Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: M1S4+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 200 units per month
Framework: |
Steel |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Max.speed: |
25km/h Or 45km/h |
Climbing Capacity: |
20% Or 25% |
Charging Time: |
8-10 Hours |
Dimension: |
3500*1200*1800mm |
Net Weight: |
560kgs |
Wheelbase: |
2490mm |
Brand: |
EXCAR |
Framework: |
Steel |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Max.speed: |
25km/h Or 45km/h |
Climbing Capacity: |
20% Or 25% |
Charging Time: |
8-10 Hours |
Dimension: |
3500*1200*1800mm |
Net Weight: |
560kgs |
Wheelbase: |
2490mm |
Brand: |
EXCAR |

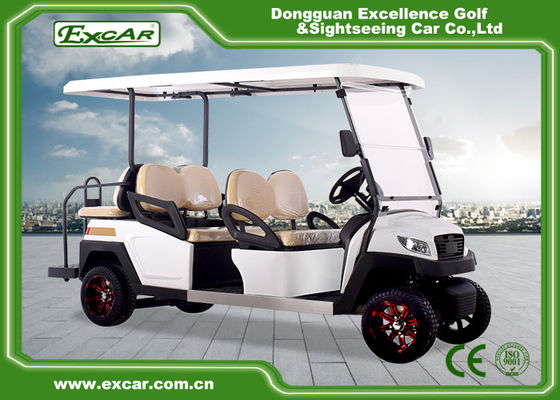

48V EXCAR 4 Wheel 6 Seat Electric Golf Carts With CE Certificated golf buggy car
Basic specification
| Item | Description |
| Brand | Excar |
| Model | M1S4+2 |
| Overall dimensions (L x W x H) | 3500x1200x1800mm |
| Ground clearance | 150mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 3.9m | 3.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
| Model | Dimension(mm) | 20” container | 40” container | |||
| M14+2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3500*1200*1800 | 3500*1200*1450 | 2 units | 4units | 6units | 12units | |
