Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , carton paper cover
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Can Be Customized |
Roof Color: |
White,black And Beige |
Seat Color: |
Black And Beige |
Motor: |
ADC 48V 3.7KW |
Controller: |
Curtis Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
48V 20A Intelligent Onboard Charger |
Max.Forward Speed: |
25 KM/H |
Range: |
80-100KM |
Body Color: |
Can Be Customized |
Roof Color: |
White,black And Beige |
Seat Color: |
Black And Beige |
Motor: |
ADC 48V 3.7KW |
Controller: |
Curtis Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
48V 20A Intelligent Onboard Charger |
Max.Forward Speed: |
25 KM/H |
Range: |
80-100KM |

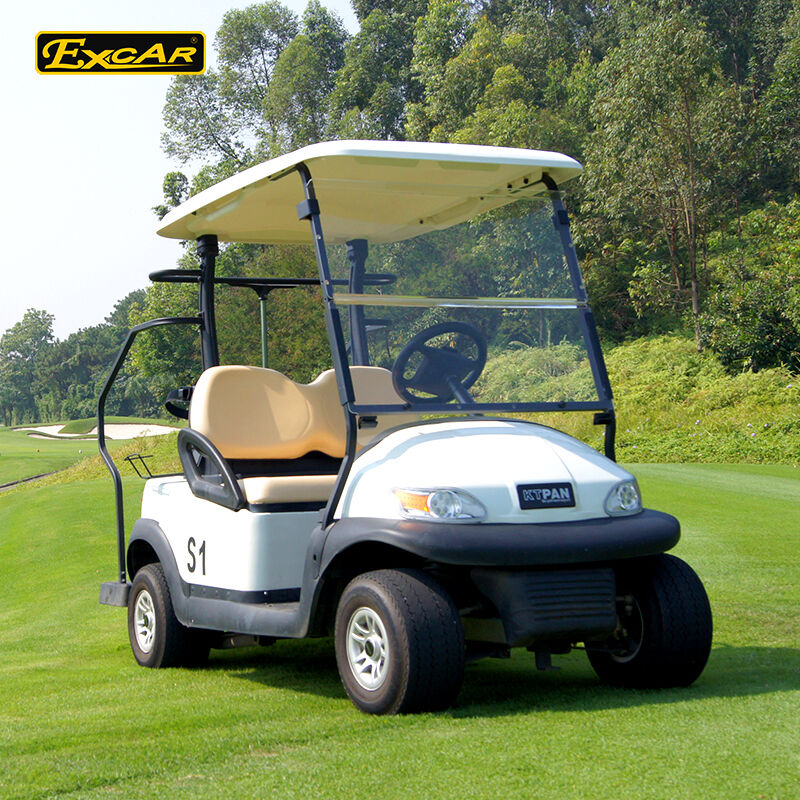

Environmental Two Seats ADC 48V 3.7KM Battery Operated Golf Cart, Electric Golf Cart
Most parts of our golf cart are same as Club Car.
Item | Description | |
System | DC system | AC system |
Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
Item | Description | |
system | DC system | AC system |
Passenger Capacity | 2 | 2 |
Climbing capacity(full load) | 30% | 35% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 70-90km | 80-90km |
Charging time | 8-10 hours | 8-10 hours |
Max.loading weight | 360kgs | 360kgs |
Min.turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
Item | Description |
Overall dimensions (L x W x H) | 2641x1219x1727mm |
Ground clearance | 114mm |
Wheelbase | 1670mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Body and Frame
Item | Description |
Frame & Chassis | Aluminum alloy beam, bended |
Body | PP engineering plastic front and rear body cover, injected |
Roof | Glass fiber reinforced plastic |
Windshield | Organic glass (PMMA),one-piece or two pieces |
Roof supports | Imbedding black coating steel tube in the plastic support |
Cushion | Reborn sponge with artificial leather and plastic bottom cover |
Backrest | Reborn sponge with artificial leather and plastic cover |
Armrest | Plastic |
Floor mat | Anti-skidding rubber |
Rear basket | Plastic |
Golf bag holder | Plastic support with nylon strap |
Dashboard | Black plastic material, battery power indicator, ignition key on it |
Beverage holders | 4 pcs cups holders, 2 pcs for each side |
Side trim | Plastic, black |
Score card holder | On the steering wheel |
Electric System
Item | Description |
Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
Horn | Electric horn, 48V |
Reverse buzzer | Electric, 48V |
Combination switch | Control the lights and horn |
Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
Item | Description |
Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
Brake System | Rear wheel mechanical brake |
Accelerator | Holzer type, stepless speed change |
Front suspension | Mcpherson independent spring suspension |
Rear suspension | Coil spring hydraulic shock absorber |
Driving model | Rear axle two stage deceleration, motor direct driving |
Wheel & Tyre | Aluminum wheel &USA Carlisle 18*8.5-8 6 layers |
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Model | Dimension(mm) | 20” container | 40” container | |||
A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units |
Product show
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
