Home > products > Electric Sightseeing Car > Electric Sightseeing Car With Iron Frame

Electric Sightseeing Car With Iron Frame

Product Details

Place of Origin: China

Brand Name: EXCAR

Certification: CE

Model Number: G1S11

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: Negotiate

Packaging Details: 20' container,40' contianer

Delivery Time: 7-15 working days

Supply Ability: 300pcs per month

Get Best Price
Product Details
Highlight:

electric tourist car

,

electric passenger car

,

Electric Sightseeing Car With Iron Frame

Roof Color:
Blue,White Or Beige
Seat Color:
White,black Or Beige
Warranty:
1 Year
Controller:
USA Curtis Controller 350A
Brand:
EXCAR
Dimension:
3950*1500*2000 MM
Chassis:
Aluminum Material
Climbing Capacity:
25%
Body Cover:
ABS Plastic
Roof Color:
Blue,White Or Beige
Seat Color:
White,black Or Beige
Warranty:
1 Year
Controller:
USA Curtis Controller 350A
Brand:
EXCAR
Dimension:
3950*1500*2000 MM
Chassis:
Aluminum Material
Climbing Capacity:
25%
Body Cover:
ABS Plastic
Product Description

EXCAR White 11 seats Motor KDS 72V 7.5KW Electric Sightseeing Bus With Iron Frame



Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.



Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:


※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Special Design Battery Tray
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ USA Imported Unique E-KEY
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator





Key Components



Item Description
System DC system AC system
Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 5kw

Battery Trojan battery, T875,6V*12pcs, imported from USA directly Trojan battery, T875,6V*12pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16

Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator





Performance



Item Description
system DC system AC system
Passenger Capacity 14 14
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max.loading weight 510kgs 510kgs
Min.turning radius 5.1m 5.1m
Max. movement after brake at speed of 20km/h ≤4m ≤4m





* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.





Dimensions



Item Description
Overall dimensions (L x W x H) 3950x1500x2000mm
Ground clearance 170mm
Wheelbase 2100mm
Front wheel tread (mm) 1210mm
Rear wheel tread (mm) 1200mm





Option Accessories



To increase the sales value of our golf cart, we also provide many optional accessories.



Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer



Packing & Shipping



Excar golf cart will be packed in steel crate



Model Dimension(mm) 20” container 40” container
A1H2/CC With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
3400*1200*1900 3400*1200*1200 2 units 4units 6units 12units






Product Image

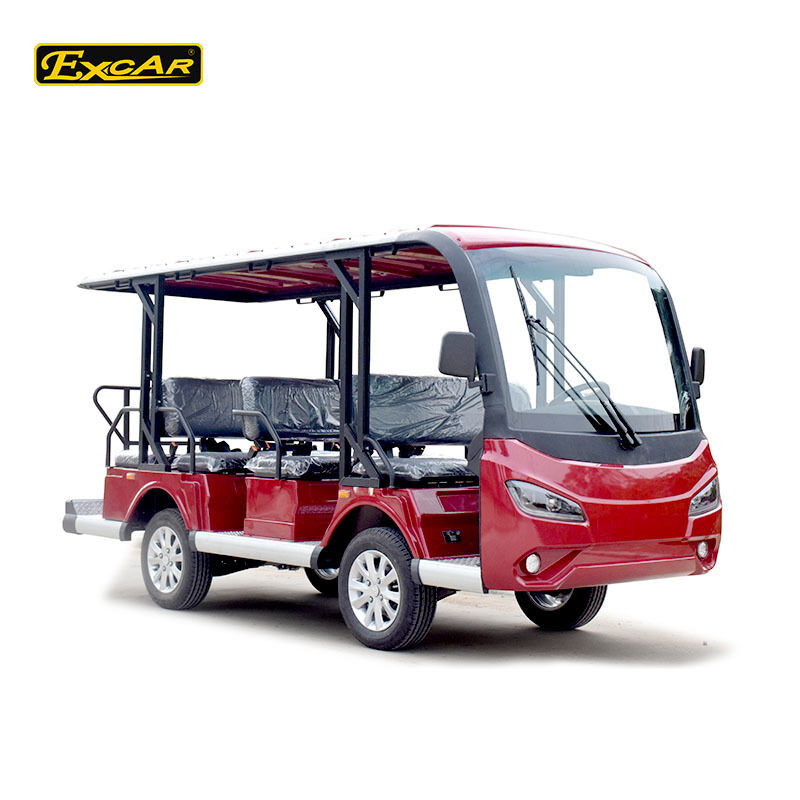

Electric Sightseeing Car With Iron Frame 0

Electric Sightseeing Car With Iron Frame 1





FAQ


1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

4.What is your lead time for production?
The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair


6.What's your payment term?

T /T 30% deposit and balance paid before shipment




Application



Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
