Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: G1S14
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: $6500-6800/per unit
Packaging Details: roof move-off packing / packed by plastic foam & plastic film / QTY 4units-20" GP / QTY 12 units-40"HQ
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 400 units/per month
Product Name: |
Electric Golf Cart |
Application: |
Outdoor |
Dimension: |
4000*1200*1700mm |
Standard: |
CE |
Battery: |
Lead Acid Battery Or Lithium Battery 48V |
Motor: |
KDS Brand |
Controller: |
Curtis 350A |
Size Of Tire: |
14 Inch |
Color: |
White Or Customize |
Product Name: |
Electric Golf Cart |
Application: |
Outdoor |
Dimension: |
4000*1200*1700mm |
Standard: |
CE |
Battery: |
Lead Acid Battery Or Lithium Battery 48V |
Motor: |
KDS Brand |
Controller: |
Curtis 350A |
Size Of Tire: |
14 Inch |
Color: |
White Or Customize |

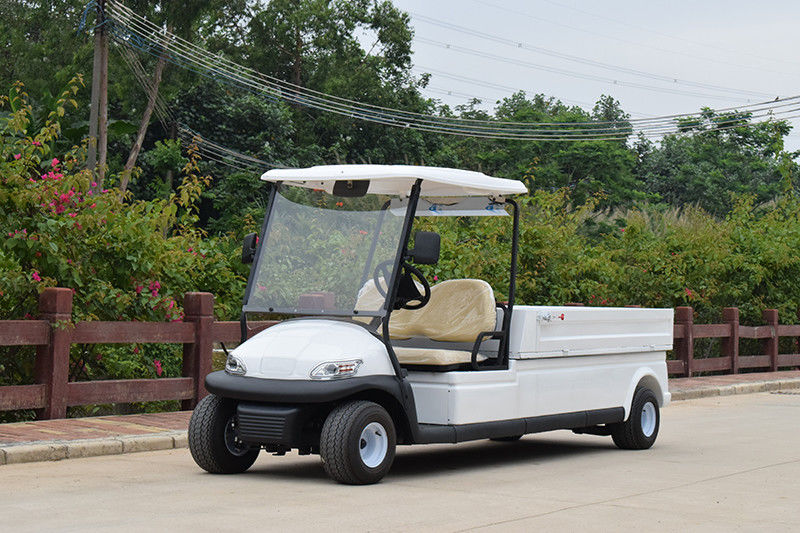

2 seater 4 wheel drive electric golf cart with utility cargo / CE certificate / electrical golf buggy
Features of A1H2:
1. Seven colors available: Gentleman black / sea blue / Bright yellow / Mysterious purple / and so on.
2. Reliable product with ISO quality control process.
3. CE approved
4. Good corrsion-resistant design.
5. High strength aluminum chassis.
6. LED front lights,rear lights and horn.
7. WIde and soft seat bottom and backrest.
8. Stiff PC material endure a serious clash.
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Applications: Golf Course / Center park / Real estate industry
Specifications:
| Dimension | 4000*1200*1700mm | F/R Track | 860/970mm |
| Wheelbase | 2300mm | Ground Clearance | 114mm |
| Min.Turning Radius | 3.6m | Net Weight | 750KG |
| Pay Load | 600KG | Max.Forward Speed | 25KM/h |
| Climbing Capacity | 20% | Range | 50-70KM |
Description:
Framework/Chassis:made of aluminum avoiding being eroded and less weight.Steel support provides large tenacity and anti-break.
Batteries: Adopted stable Trojan T-875 batteries from USA. Another optional is lithium battery pack with power of 48 Voltage supply more energy and lasting more time.
Motor: 72V r separately excited motor from KDS,with the feature of low noise and strong power.
Body: The whole body is made of engineering plastic,which helps lighten the electrical golf cart and made the cart looks beauty.
Packing & Shipping:
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
| Container Capacity | Remove roof,windshield | with roof & windshield |
| Qty/20'GP | 4units | 2units |
| Qty/40'HQ | 12units | 6units |
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
