Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2+2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Color: |
Can Be Customized |
Motor: |
NIDEC KDS 48V 5KM ACIM Motor |
Controller: |
NIDEC KDS Controller 48V 350A |
Batteries: |
Lithium Battery Pack 48V 105Ah |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Special Rear Axle For Electric Vehicle |
Brake System: |
Rear Self-adjusting Drum Brake |
Steering System: |
Dual Self-adjusting Rack&pinion |
F/R Suspension: |
Mopherson Independent Spring Suspension |
Tyre: |
205/50-10 Tyre |
Color: |
Can Be Customized |
Motor: |
NIDEC KDS 48V 5KM ACIM Motor |
Controller: |
NIDEC KDS Controller 48V 350A |
Batteries: |
Lithium Battery Pack 48V 105Ah |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Special Rear Axle For Electric Vehicle |
Brake System: |
Rear Self-adjusting Drum Brake |
Steering System: |
Dual Self-adjusting Rack&pinion |
F/R Suspension: |
Mopherson Independent Spring Suspension |
Tyre: |
205/50-10 Tyre |

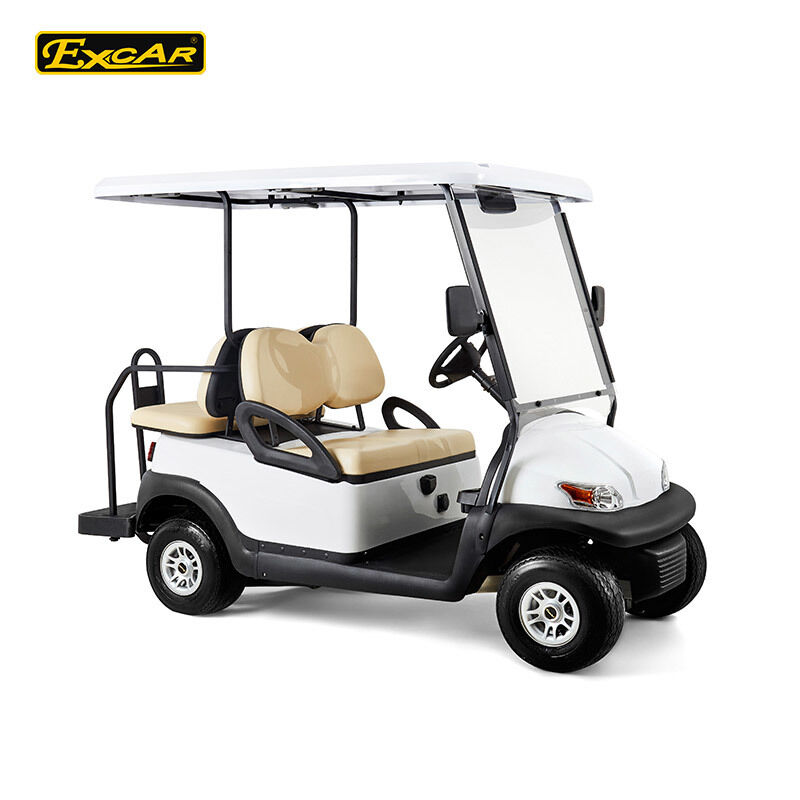

EXCAR A1S2+2 White 48V lithium Battery Powered Vehicle Electric Golf Car
Item | Description | |
System | AC system | |
Motor | NIDEC KDS 48V 5KM ACIM motor | |
Controller | NIDEC KDS controller 48V 350A | |
Battery | lithium battery pack 48V 105Ah | |
Charger | 48V 17A Intelligent onboard charger | |
Transaxle | special rear axle for electric vehicle | |
Brake system | rear self-adjusting drum brake | |
Steering system | dual self-adjusting rack&pinion | |
F/R suspension | mopherson independent spring suspension | |
tyre | 205/50-10 tyre |
Performance
Item | Description | |
Number of seat | 4 | |
Dimension | 2900*1200*1900mm | |
F/R track | 860/970mm | |
Wheelbase | 1670mm | |
Ground clearance | 114mm | |
Min. turning radius | 2.9m | |
Net wight | 420KG | |
Pay load | 360KG | |
Climbing capacity(full load) | 30% | |
Chassis | aluminum chassis | |
Body cover | PP engineering plastic | |
Max.forward speed | 35 KM/H | |
Range | 80-100KM |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item | Description |
Overall dimensions (L x W x H) | 2900x1200x1900mm |
Ground clearance | 114mm |
Wheelbase | 1670mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Body and Frame
Item | Description |
Frame & Chassis | Aluminum alloy beam, bended |
Body | PP engineering plastic front and rear body cover, injected |
Roof | Glass fiber reinforced plastic |
Windshield | Organic glass (PMMA),one-piece or two pieces |
Roof supports | Imbedding black coating steel tube in the plastic support |
Cushion | Reborn sponge with artificial leather and plastic bottom cover |
Backrest | Reborn sponge with artificial leather and plastic cover |
Armrest | Plastic |
Floor mat | Anti-skidding rubber |
Rear basket | Plastic |
Golf bag holder | Plastic support with nylon strap |
Dashboard | Black plastic material, battery power indicator, ignition key on it |
Beverage holders | 4 pcs cups holders, 2 pcs for each side |
Side trim | Plastic, black |
Score card holder | On the steering wheel |
Electric System
Item | Description |
Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
Horn | Electric horn, 48V |
Reverse buzzer | Electric, 48V |
Combination switch | Control the lights and horn |
Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
Item | Description |
Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
Brake System | Rear wheel mechanical brake |
Accelerator | Holzer type, stepless speed change |
Front suspension | Mcpherson independent spring suspension |
Rear suspension | Coil spring hydraulic shock absorber |
Driving model | Rear axle two stage deceleration, motor direct driving |
Wheel & Tyre | Aluminum wheel &USA Carlisle 205/50-10 layers |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
