Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S2+2/FF
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Color: |
Green Or Customized |
Transaxle: |
Italy Graziano Axle 12:1 |
Motor: |
3.7KW ADC Motor |
Warranty: |
1 Year Sicne The Day To Ship Out |
Lead Time: |
7-15 Days After Deposit Paid |
Port: |
Yantian,Shenzhen |
Color: |
Green Or Customized |
Transaxle: |
Italy Graziano Axle 12:1 |
Motor: |
3.7KW ADC Motor |
Warranty: |
1 Year Sicne The Day To Ship Out |
Lead Time: |
7-15 Days After Deposit Paid |
Port: |
Yantian,Shenzhen |

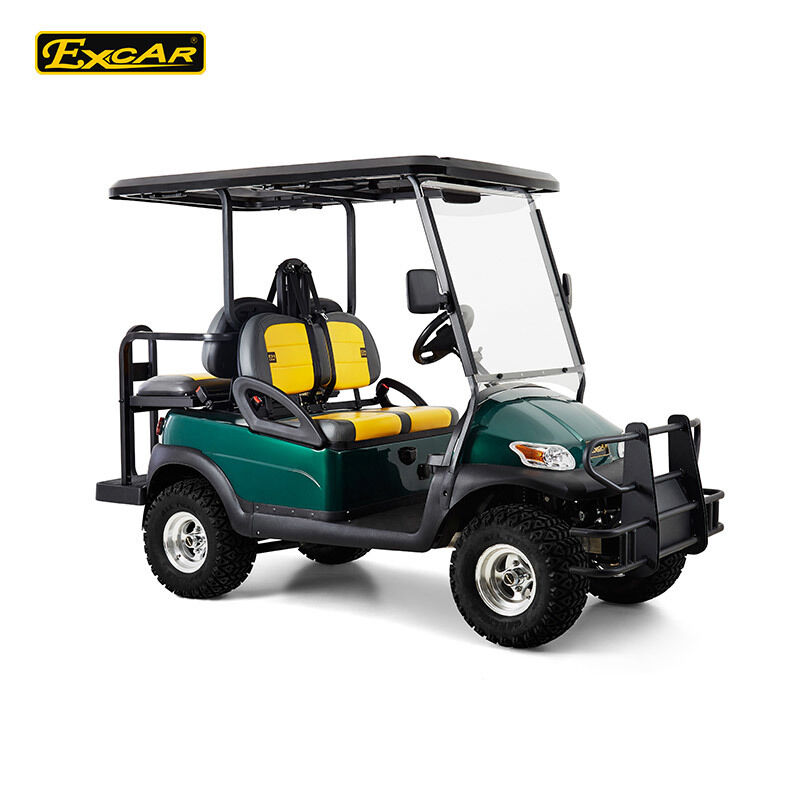

Battery Operated 48V Lifted Electric Golf Cart 4 Seater Green 3.7KW ADC Motor Golf Carts
Basic specification
Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
Feather of golf cart:
Battery | 6*8V 275AH Trojan T-875 | ||
Power of Motor | 48V 3700W | ||
Controller | American Curtis Electronics Controller | ||
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
Transaxle | Italy Graziano axle | ||
Charger | Intelligent Onbaord Charger | ||
Chassis configuration | |||
Front-Suspension | Independent Spring Front Suspension | ||
Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
Performance | |||
Max Speed | 25 km/h | Chassis | Aluminum |
Max Travel Distance | 70-90km | Wheelbase | 2490mm |
Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
Brake Range | ≤3m | Rear Wheel Tread | 970mm |
Max Noise | <50dB | Tires | 205/50-10 |
Carrying Capacity | 600KG | Dimension | 3200*1200*1900mm |
Turning Radius | 2900mm | Passengers | 4 Person |
Net Weight | 430kg | Ground Clearance | 124mm |
Performance
system | DC system | AC system |
Passenger Capacity | 4 | 4 |
Climbing capacity(full load) | 20% | 25% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 60-80km | 80-100km |
Charging time | 8-10 hours | 8-10 hours |
Max. loading weight | 300kgs | 300kgs |
Min. turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Color options
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What's your payment term?
T/T 30% deposit and balance paid before shipment
Application
*Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
