Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: M1S2+2FF
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
ADC Motor 48V 3KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Italy Graziano Axle |
Seat: |
4 Seater |
Brand: |
EXCAR |
Range: |
80-100KM |
Tyre: |
215/40R12 Tyre |
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
ADC Motor 48V 3KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Italy Graziano Axle |
Seat: |
4 Seater |
Brand: |
EXCAR |
Range: |
80-100KM |
Tyre: |
215/40R12 Tyre |

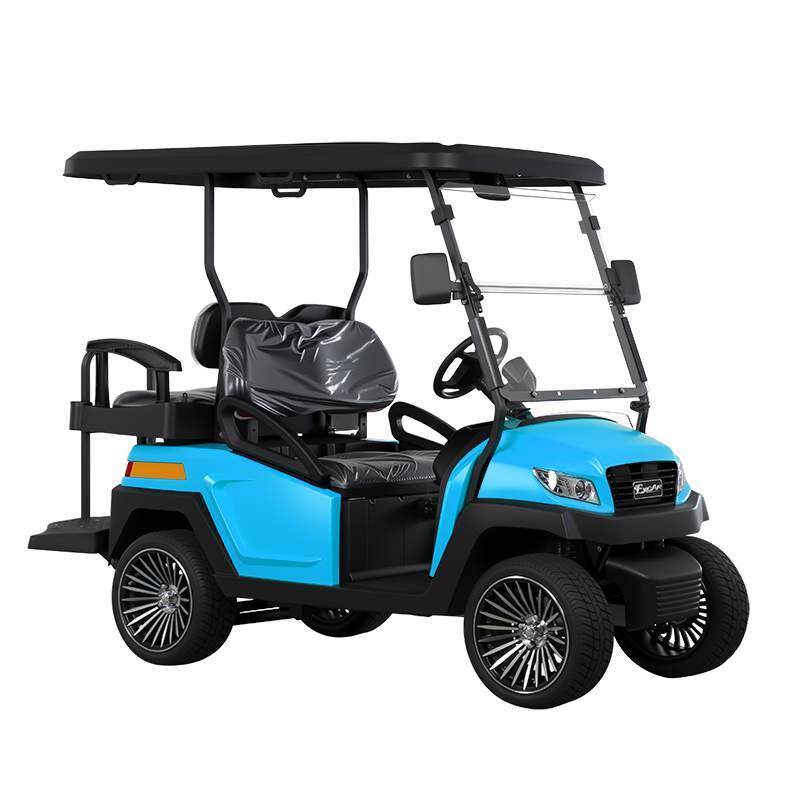

48V high-end 4 seater electric hunting carts club car electric golf cart buggy car
Description
| Configuration: | |||
| Battery | USA Trojan 6*8V T-875 | ||
| Power of Motor | 48V 3.7KW ADC Seperately excited motor | ||
| Controller | USA Curtis Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Charger | 48V 17A Intelligent Onbaord Charger | ||
| Chassis Configuration: | |||
| Transaxle | Italy Graziano axle | ||
| Front/Rear Suspension | MCPHERSON Independent Spring Suspension | ||
| Steering System | Dual Self-Adjusting "Rack&Pinion" Steetring | ||
| Brake System | Rear Self-Adjusting Drum Brake | ||
| Tyre | Carlisle 18*8.5-8 6 layers | ||
| Performance | |||
| Passengers | 2 Person | Chassis | Aluminum |
| Max Speed | 25 km/h | Wheelbase | 1670mm |
| Range | 80-100km | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50db | Body cover | PP engineering plastic |
| Net Weight | 430kgs | Dimension | 2700*1200*1900mm |
| Load Weight | 360kgs | Climbing capacity | 30% |
| Turning Radius | 2.9m | Ground Clearance | 124mm |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3200x1200x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
