Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: M1S2+2FF
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 200 units per month
Framework: |
Aluminium |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Voltage: |
48V Trojan T-875 |
Climbing Capacity: |
20% Or 25% |
Endurance: |
70-100km |
Framework: |
Aluminium |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Voltage: |
48V Trojan T-875 |
Climbing Capacity: |
20% Or 25% |
Endurance: |
70-100km |

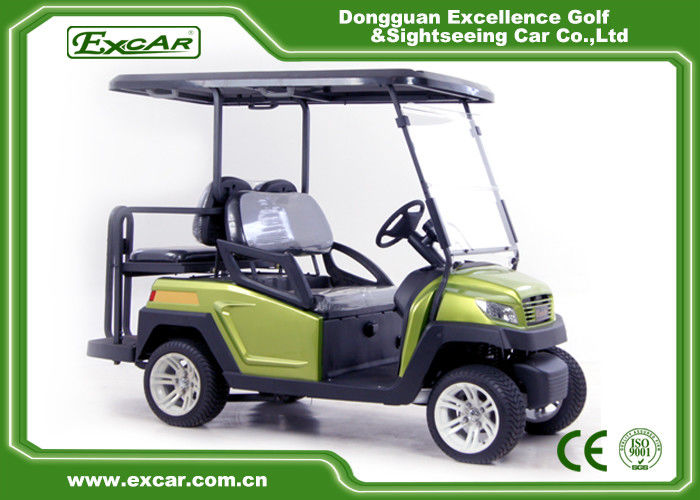

Excar 4 Seater 275A Controller Hunting Tyre Electric Golf Carts 48V USA Trojan Battery Golf Cart
Basic specification
The outside cover of this golf cart M1S2+2/FF made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.
Item | Description |
Brand | Excar |
Model | M1S2+2FF |
Overall dimensions (L x W x H) | 3200x1200x1800mm |
Ground clearance | 150mm |
Wheelbase | 1670mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Key Components
System | DC system | AC system |
Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
system | DC system | AC system |
Passenger Capacity | 4 | 4 |
Climbing capacity(full load) | 20% | 25% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 60-80km | 80-100km |
Charging time | 8-10 hours | 8-10 hours |
Max. loading weight | 300kgs | 300kgs |
Min. turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Electric System
Item | Description |
Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
Horn | Electric horn, 48V |
Reverse buzzer | Electric, 48V |
Combination switch | Control the lights and horn |
Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Color Options
Body colour | White | Grey | Sky blue |
Dark blue | Red | Wine red | |
Green | Dark green | Yellow | |
Purple | Champagne | Black | |
These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Model | Dimension(mm) | 20” container | 40” container | |||
M1S2+2FF | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
3200*1200*1800 | 3200*1200*1400 | 4 units | 8units | 8units | 16units |

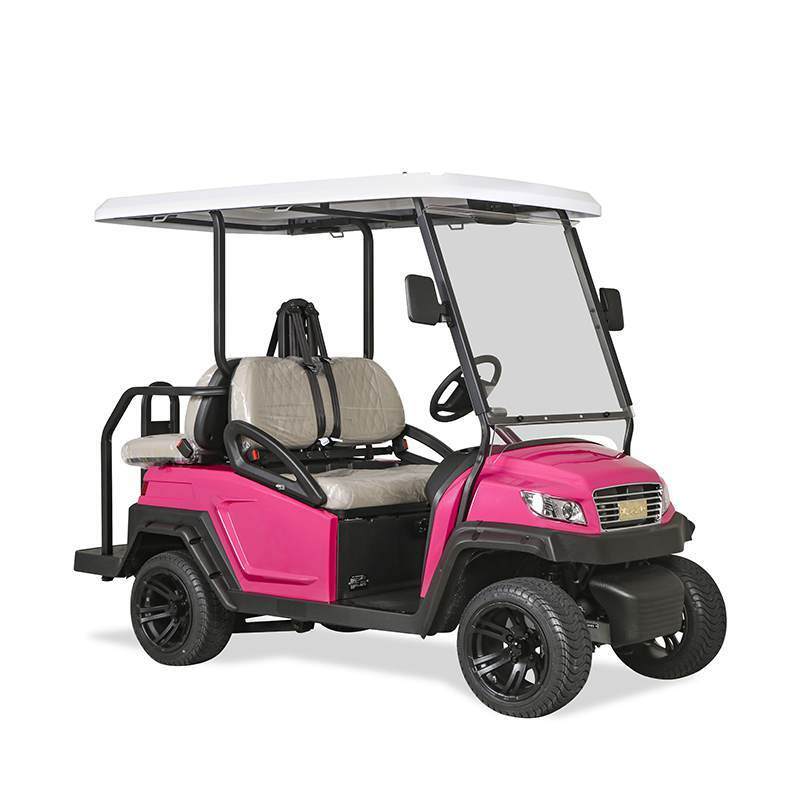

Poduct Image:
FAQ:
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
