Payment & Shipping Terms:
|Transaxle:||Italy Graziano Axle||Warranty:||1 Year|
|Production Time:||7-15 Days After Deposit Paid||Body Color:||White Or Based On Panton Number|
|Tyre:||205/50-10 Tyre||Chassis:||Aluminum Material|
electric police car,
security golf carts

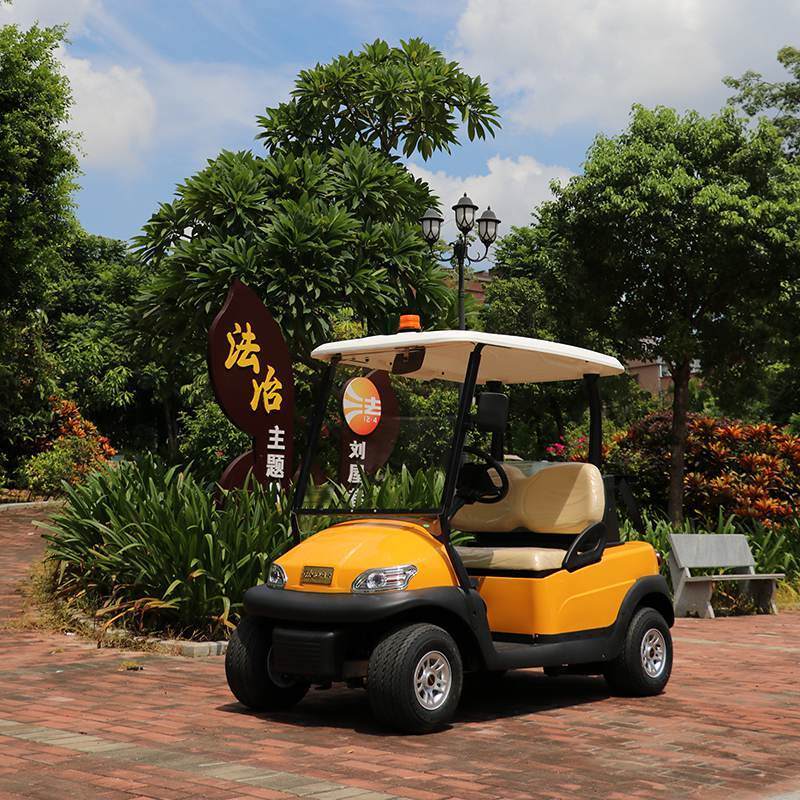

EXCAR White 2 Seats Convoy Vehicle Electric Patrol Car ADC 48V 3.7KW Separately Patrol Car
Electric Convoy Vehicle had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
Feather of golf cart:
|Battery||6*8V 275AH Trojan T-875|
|Power of Motor||48V 3700W|
|Controller||American Curtis Electronics Controller|
|Accelerator||Adjustable Inductive Accelerator Continuously Variable Speed System|
|Transaxle||Italy Graziano axle|
|Charger||Intelligent Onbaord Charger|
|Front-Suspension||Independent Spring Front Suspension|
|Rear-Suspension||Spring Hydraulic Shock Absorbers|
|Steering||Dual Self Adjusting "Rack&Pinion" Steetring|
|Brakes||Rear Wheel Mechanical Drum Brake and Regeneration Brake|
|Max Speed||25 km/h||Chassis||Aluminum|
|Max Travel Distance||70-90km||Wheelbase||2490mm|
|Slope Climbing Capacity||30%||Front Wheel Tread||860mm|
|Brake Range||≤3m||Rear Wheel Tread||970mm|
|Turning Radius||2900mm||Passengers||6 Person|
|Net Weight||630kg||Ground Clearance||124mm|
|system||DC system||AC system|
|Climbing capacity(full load)||20%||25%|
|Max. forward speed||23km/h||45km/h|
|Charging time||8-10 hours||8-10 hours|
|Max. loading weight||360kgs||360kgs|
|Min. turning radius||2.9m||2.9m|
|Max. movement after brake at speed of 20km/h||≤4m||≤4m|
1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
|Item||Option description||Item||Option description|
|2||Hinged windshield||12||Battery water refill system|
|3||Laminated windshield with wiper||13||Digital meter|
|4||Steel brush guard||14||EM brake|
|5||Front steel basket||15||Four wheel disc brake|
|6||Inner rear view mirror||16||Carlisle 205/50-10 tyre with10inch wheel|
|7||Side rear view mirror||17||Ice box|
|9||Sunshine cover||19||Sand rake|
|10||Golf bag cover||20||Ball washer|
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
