Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S2+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum Material |
Climbling: |
30% |
Passengers: |
4 |
Roof Color: |
White,Black Or Beige |
Seat: |
8 Seater |
Battery: |
Trojan Battery |
Range: |
60-80KM |
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum Material |
Climbling: |
30% |
Passengers: |
4 |
Roof Color: |
White,Black Or Beige |
Seat: |
8 Seater |
Battery: |
Trojan Battery |
Range: |
60-80KM |

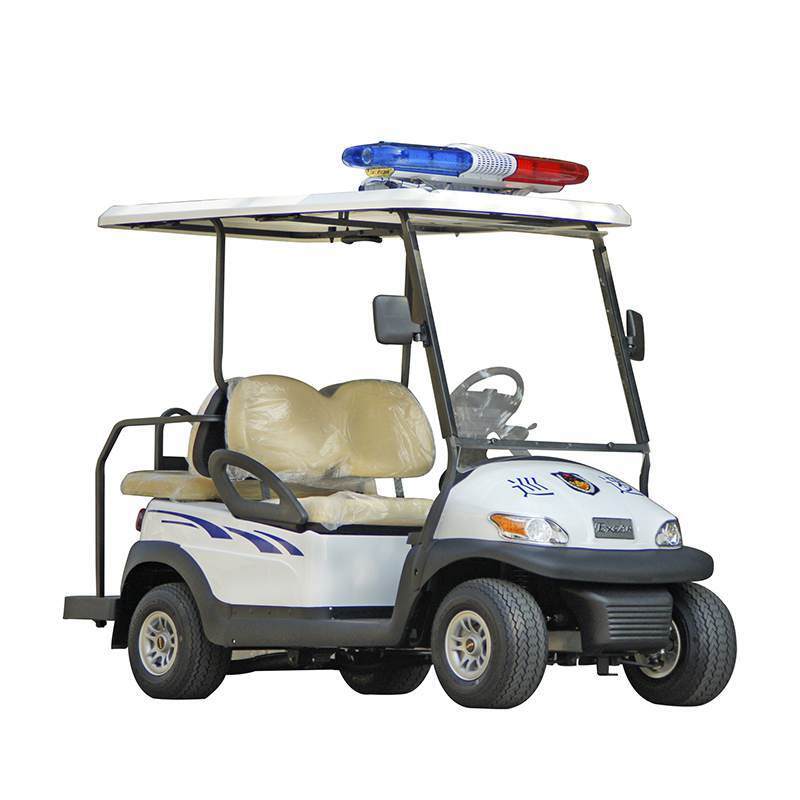

White 4 seater Electric Patrol car 48V 3.7KW cheap golf cart for sale
Features as below:
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
10.Curtis Controller 48V 275A
Performance
Item | Description | |
system | DC system | AC system |
Passenger Capacity | 4 | 4 |
Climbing capacity(full load) | 30% | 35% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 70-90km | 80-90km |
Charging time | 8-10 hours | 8-10 hours |
Max. loading weight | 360kgs | 360kgs |
Min. turning radius | 2.9m | 2.9m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimension:
Item | Description |
Overall dimensions (L x W x H) | 4292x1219x1828mm |
Ground clearance | 114mm |
Wheelbase | 3300mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Electric System
Item | Description |
Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
Horn | Electric horn, 48V |
Reverse buzzer | Electric, 48V |
Combination switch | Control the lights and horn |
Option Accessories
Item | Option description | Item | Option description |
1 | E-key | 11 | 2-point seatbelt |
2 | Hinged windshield | 12 | Battery water refill system |
3 | Laminated windshield with wiper | 13 | Digital meter |
4 | Steel brush guard | 14 | EM brake |
5 | Front steel basket | 15 | Four wheel disc brake |
6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
7 | Side rear view mirror | 17 | Ice box |
8 | Enclosure | 18 | Sand bottle |
9 | Sunshine cover | 19 | Sand rake |
10 | Golf bag cover | 20 | Ball washer |
Color options
Body colour | White | Grey | Sky blue |
Dark blue | Red | Wine red | |
Green | Dark green | Yellow | |
Purple | Champagne | Black | |
These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
Seat & Roof colour | Black | Beige | White |
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit,if your order qty is big then we can give you some discount
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
