Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S4
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , carton paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Transaxle: |
Italy Graziano Alex |
Warranty: |
1 Year |
Production Time: |
7-15 Days After Deposit Paid |
Body Color: |
White Or Based On Panton Number |
Brand: |
EXCAR |
Motor: |
ADC 48V 3.7KW |
Chassis: |
Aluminium Chassis |
F/R Track: |
860 / 970 MM |
Max.forward Speed: |
24 KM/H |
Battery: |
T-875 Trojan Battery |
Transaxle: |
Italy Graziano Alex |
Warranty: |
1 Year |
Production Time: |
7-15 Days After Deposit Paid |
Body Color: |
White Or Based On Panton Number |
Brand: |
EXCAR |
Motor: |
ADC 48V 3.7KW |
Chassis: |
Aluminium Chassis |
F/R Track: |
860 / 970 MM |
Max.forward Speed: |
24 KM/H |
Battery: |
T-875 Trojan Battery |

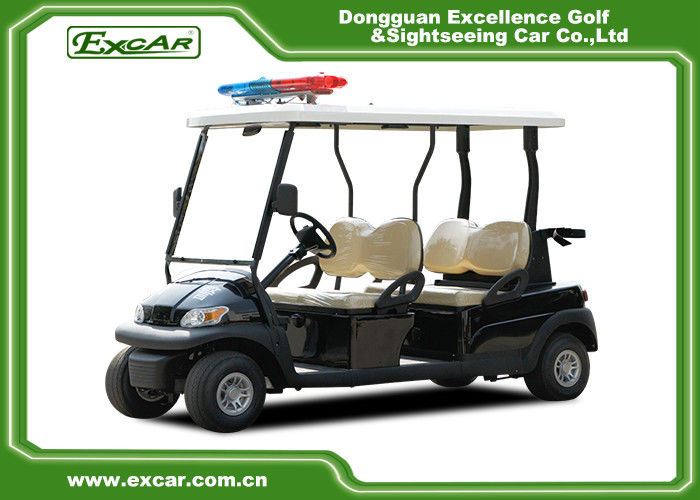

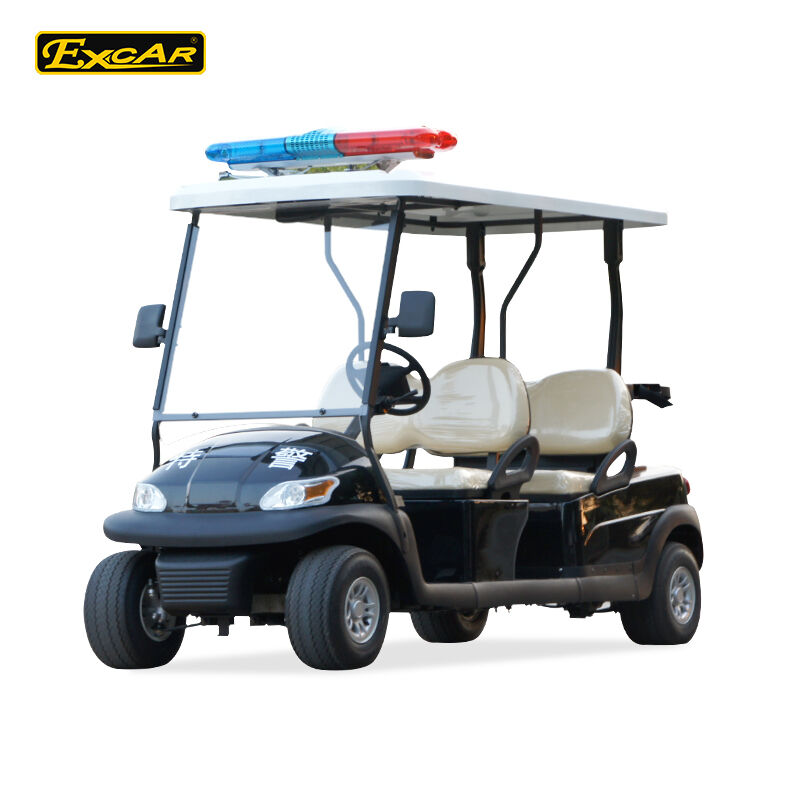

EXCAR 4 Seats ADC 48V 3.7KW Electric Patrol Car Electric golf cart with caution light
Feature of Product:

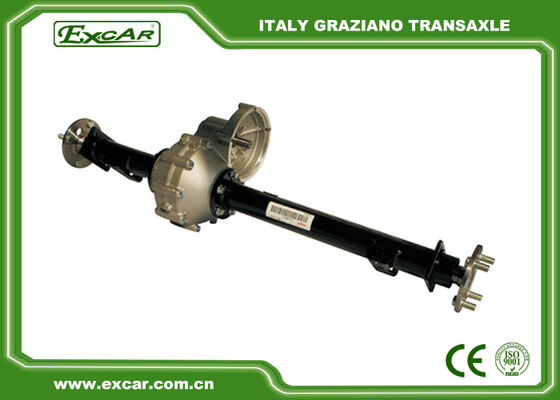

1,Italy Graziano Transaxle
2,Unique E-KEY
3,Electromagnetic Brake Makes Driving More Safty
4,Special Design LED Headlight
5,Advanced Disc Brake Technology
6,Three-point Seat Belts
7,Rear View Mirror And Driver/Passenger Side Mirrors
8,Automotive Safty Glass Windshield
9,Deep Cup Holders,
10,Comfortable,Contoured Seats
11,100% waterproof accelerator
Overall dimensions (L x W x H):3175x1219x1727mm
Ground clearance:114mm
Wheelbase:2490mm
Front wheel tread (mm):860mm
Rear wheel tread (mm):970mm
Lights:48V, LED headlight (includes turning light and position light),
LED taillights (includes brake lights and turning light),
Horn:Electric horn, 48V
Reverse buzzer:Electric, 48V
Combination switch:Control the lights and horn
Digital Meter (optional):Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S4 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3175*1219*1727 | 3175*1219*1250 | 2 units | 4units | 6units | 12units | |
Product Image
