Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3400*1200*1800 MM |
F/R: |
860/970 MM |
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3400*1200*1800 MM |
F/R: |
860/970 MM |

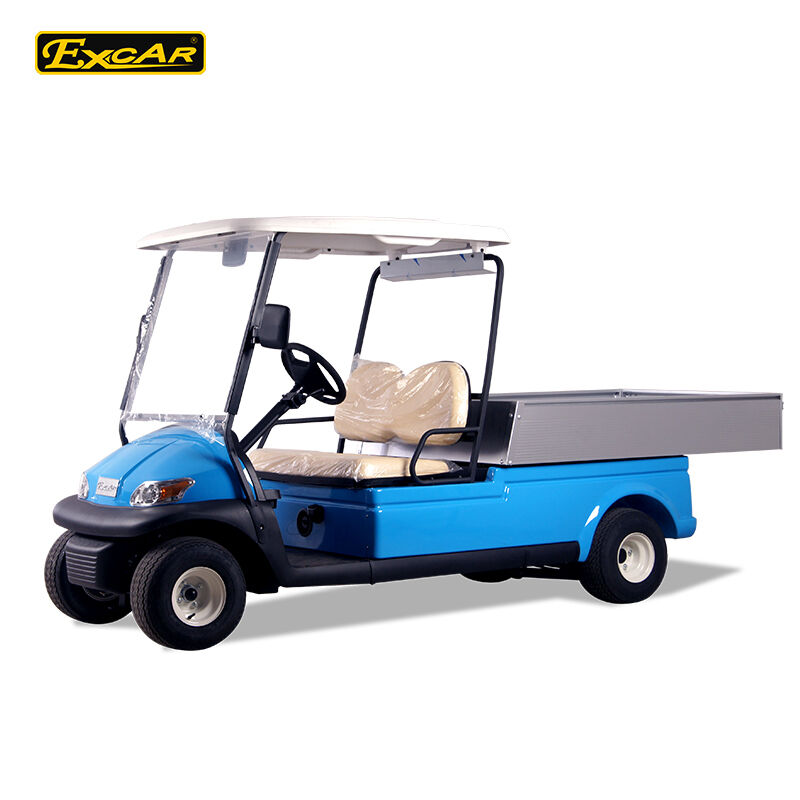

EXCAR 48V Trojan battery Hotel Buggy Car 2 Seats Electric Utility Golf Carts
Feature of Product:
| Features | |||
| ※ Italy Graziano Transaxle | |||
| ※ Unique E-KEY | |||
| ※ Electromagnetic Brake Makes Driving More Safty | |||
| ※ Special Design LED Headlight | |||
| ※ Advanced Disc Brake Technology | |||
| ※ Three-point Seat Belts | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ Comfortable,Contoured Seats | |||
| ※ 100% waterproof accelerator |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3350x1150x1750mm |
| Ground clearance | 114mm |
| Wheelbase | 2310mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
To increase the sales value of our golf cart, we also provide many optional accessories
.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
