Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3400*1200*1800 MM |
F/R: |
860/970 MM |
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3400*1200*1800 MM |
F/R: |
860/970 MM |

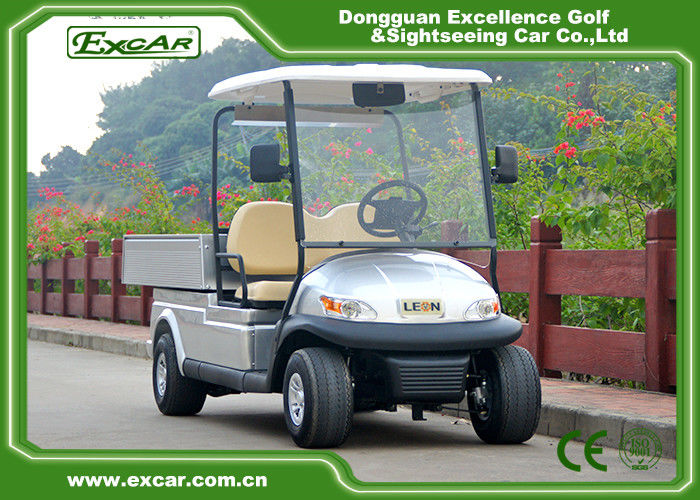

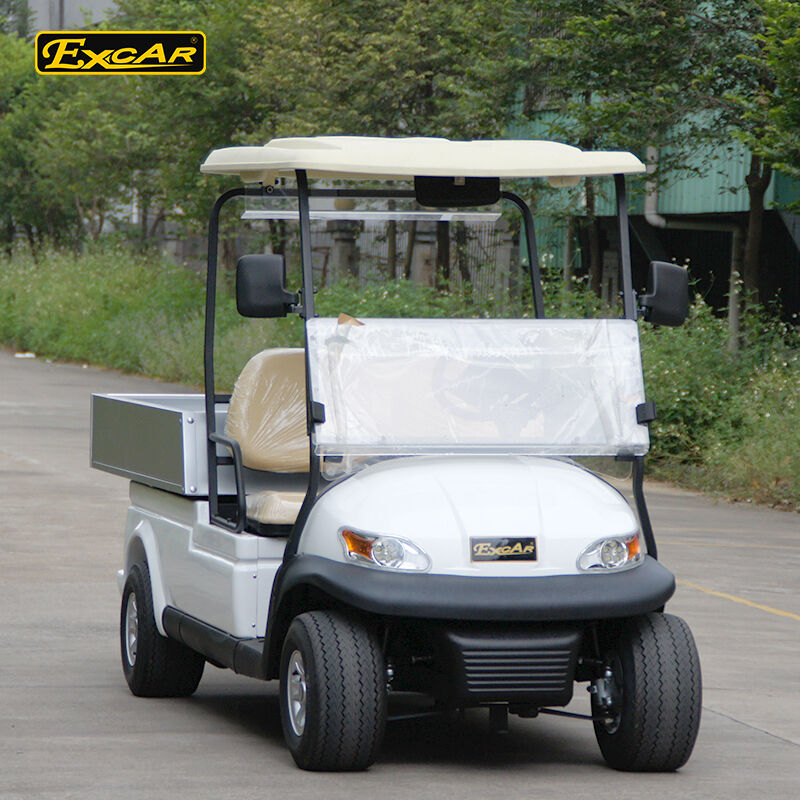

48V Trojan battery Hotel Buggy Car Excar Cheap 2 Seats Electric Golf Carts
Dimensions
| Model:A1H2 | |
| Passenger capacity | |
| Body and cover | |
| Standard specification | |
| Dimension | 3350*1150*1750mm |
| Load | 600kgs |
| Road clearance | 114mm |
| F/R tyre distant | 860/970mm |
| Wheelbase | 5.1m |
| Net weight(ex.Bat) | 837lbs/380kg |
| Climbing capacity | 30% |
| Endurance mileage | 70-90km |
| Max forward speed | 23km/h |
| Drive system | |
| Motor | 48V 3.7KW USA ADC |
| Battery | USA Trojan T-875 6*8V |
| Charger | KN offboard charger |
| Tranaxle | Italian GRAZIANO gear ratio 1:12 |
| Controller | Curtis controller 48V 400A |
| Cargo box dimension | L:1500mm |
| W:1160mm | |
| H:1000mm | |
| Cargo box type | Closed cargo box |
| 2 rooling doors at both sides | |
| No shelves | |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
