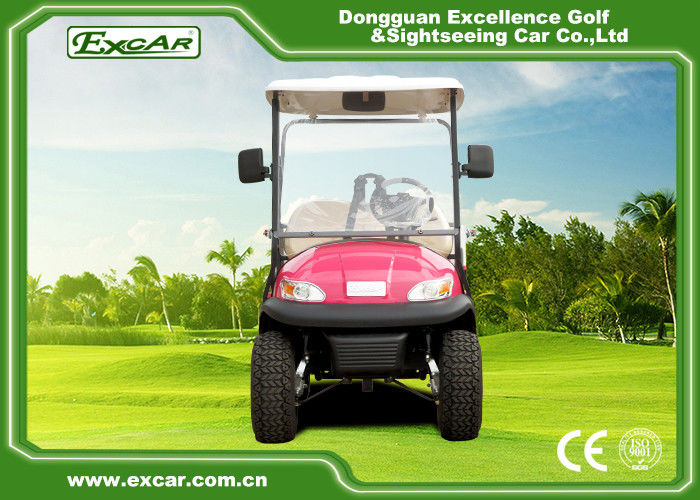

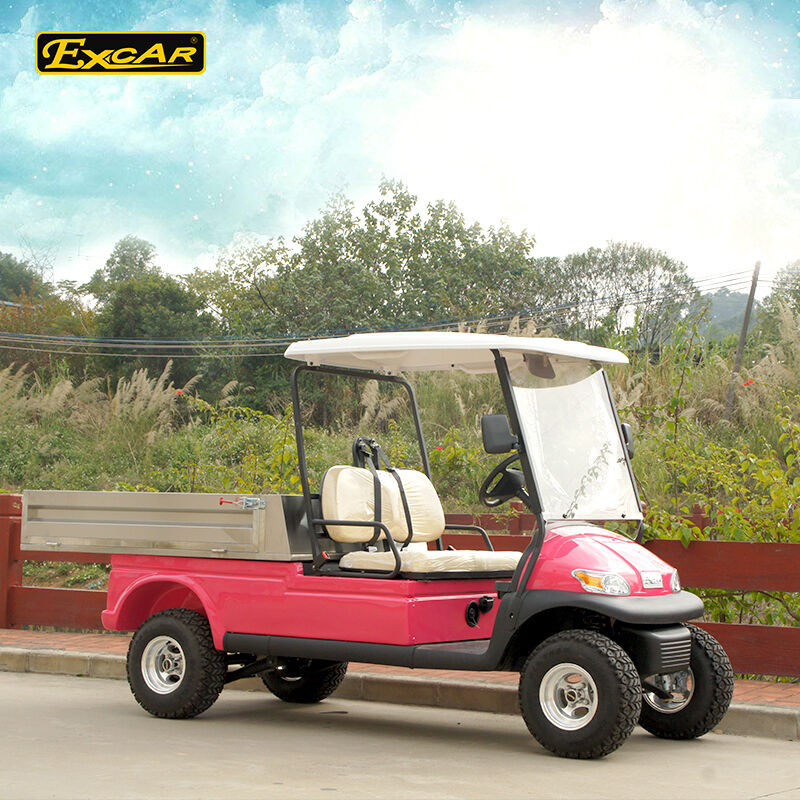

Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W

Certification
China Dongguan Excar Electric Vehicle Co., Ltd certification
China Dongguan Excar Electric Vehicle Co., Ltd certification
Customer Reviews
After testing we think EXCAR golf carts' quality is really very good. So we like EXCAR carts and choose to cooperate with them!

—— Mr. Brian Ong

EXCAR is very professional and reliable supplier for us. We've cooperated for 7 years. They provide very good technical support, this helps us a lot!

—— Mr. Christophe Sarry

Excar's service and product gave me surprise, they did so well for all things. Choose to cooperate with them is a right choice.

—— Mr. Kurt

I'm Online Chat Now

Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W

Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W
Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W

Large Image :  Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W

Product Details:

Place of Origin: China
Brand Name: EXCAR
Certification: CE Certification
Model Number: A1H2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 3000~6000 USD
Packaging Details: by plastic foam & plastic film
Delivery Time: 15-30 work days
Payment Terms: T/T L/C
Supply Ability: 5000PCS/Year
Detailed Product Description
Color: Pink Brand: EXCAR Or Customized
Power: 3700W Power Fuel: Electric
Range: 50-70KM Dimension: 3400*1200*1800 MM
Battery Brand: Trojan Controller Brand: Curtis
High Light:

electric utility car

,

electric utility vehicle

Pink Open Cargo Trojan Battery Electric Golf Vehicle Curtis Controller 3700W



Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor ADC brand Separately excited
DC motor 48V 3.7kw
ADC brand Separately excited
AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle Italian GRAZIANO axle
with gear ration 1:12
Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator
High Frequency onboard charger
48V/17A regulator


Performance

Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km
Charging time 8-10 hours 8-10 hours
Max. loading weight 360kgs 360kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m








* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item Description
Overall dimensions (L x W x H) 3400x1200x1800mm
Ground clearance 114mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm


Body and Frame

Item Description
Frame & Chassis Aluminum alloy beam, bended
Body PP engineering plastic front and rear body cover, injected
Roof Glass fiber reinforced plastic
Windshield Organic glass (PMMA), one-piece or two pieces
Roof supports Imbedding black coating steel tube in the plastic support
Cushion Reborn sponge with artificial leather and plastic bottom cover
Backrest Reborn sponge with artificial leather and plastic cover
Armrest Plastic
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel



​​​​
