Product Details
Place of Origin: China
Brand Name: EXCAR or Customizable
Certification: CE Certification
Model Number: A1S2+2/FF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $4000~$5000
Packaging Details: With the thin film, wood or steel frame
Delivery Time: 7~15 work days
Payment Terms: Western Union, D/P, D/A, Western Union, T/T
Supply Ability: 5000pcs/year
Motor: |
ADC Motor |
Battery: |
Trojan Battery |
Controller: |
Curtis Controller |
Charger: |
Onboard Or Offboard |
Certification: |
CE Certification |
Transaxle: |
Italy Graziano Axle |
Seat: |
4 Seaters |
Motor: |
ADC Motor |
Battery: |
Trojan Battery |
Controller: |
Curtis Controller |
Charger: |
Onboard Or Offboard |
Certification: |
CE Certification |
Transaxle: |
Italy Graziano Axle |
Seat: |
4 Seaters |

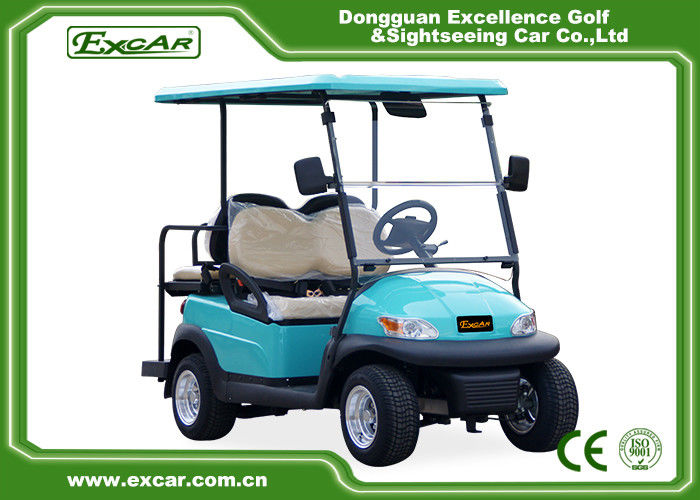

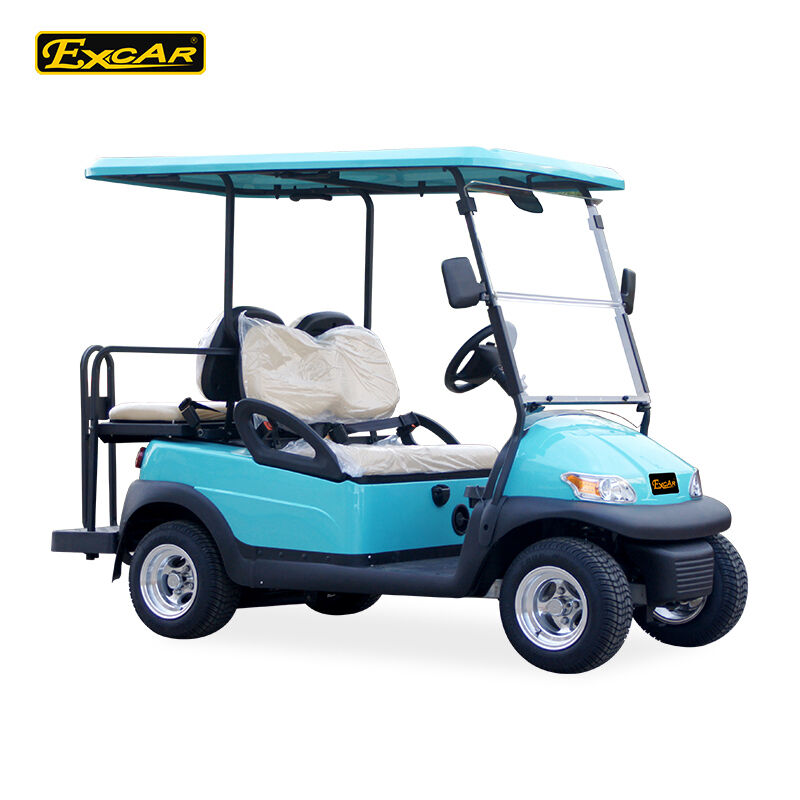

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Details Specification
DIMENSION:3200*1200*2000MM
F/R TRACK:860/970MM
WHEELBASE:1670MM
GROUND CLEARANCE:150MM
MIN.TURNING RADIUS:2.9M
NET WEIGHT:400KGS
PAY LOAD:400KGS
CLIMBING CAPACITY (FULL LOAD):25%
MAX.FORWARD SPEED:35KM/H
RANGE:80-100KM
CONFIGURATION:
MOTOR:KDS 48V 5KW ACIM MOTOR
CONTROLLER:CURTIS AC CONTROLLER 48V 350A
BATTERIES:TROJAN T-875 6*8V / T-105 8*6V
CHARGER:48V 25A INTELLIGENT ONBOARD CHARGER
CHASSIS:ALUMINUM CHASSIS
CHASSIS CONFIGURATION:
TRANSAXLE:ITALY GRAZIANO AXLE
BRAKE SYSTEM:FOUR WHEEL HYDRAULIC DISC BRAKE
STEERING SYSTEM:DUAL SELF-ADJUSTING RACK & PINION
F/R SUSPENSION:MCPHERSON INDEPENDENT SPRING SUSPENSION
TYRE:22*11-10 TYRE
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
| Color options | |||
| Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number | |||
| Seat Color:Black or Beige | |||
| Roof Color:Black,White or Beige |
Shipping & Package
| 20" container | 40" container | ||
| With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 4 units | 8units | 10units | 20units |
FAQ:
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
