Product Details
Place of Origin: China
Brand Name: excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Blue Or Do On Pantone Number |
Roof Color: |
White,black And White |
Seat: |
2 Person |
Motor: |
3.7KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery 48V |
Transaxle: |
Italy Graziano Axle |
Battery: |
Trojan Battery |
Tyre: |
8` Or 10` |
Body Color: |
Blue Or Do On Pantone Number |
Roof Color: |
White,black And White |
Seat: |
2 Person |
Motor: |
3.7KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery 48V |
Transaxle: |
Italy Graziano Axle |
Battery: |
Trojan Battery |
Tyre: |
8` Or 10` |

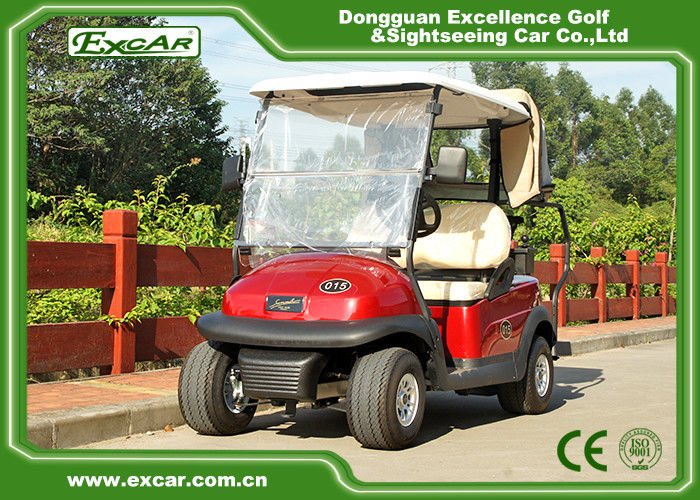

2 Seaters Mini Electric Golf Cart Curtis Controller With Italy Graziano Axle
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
| No | item | unit | Design value | |
| 1 | Rated load(including driver) | person | 2 | |
| 2 | Maximum speed | No load | km/h | 23 |
| Full load | 18 | |||
| 3 | Vehicle weight | kg | 430 | |
| Vehicle load | 360 | |||
| 4 | Dimension | mm | 2700*1200*1900 | |
| 5 | Minimum ground clearance | No load | 124 | |
| Full load | 120 | |||
| 7 | Wheelbase | Left | 1670 | |
| Right | 1670 | |||
| 8 | Wheelbase | Front | 860 | |
| Rear | 970 | |||
| 9 | Ground clearance | 124 | ||
| 10 | Min.turning radius | m | 2.9 | |
| 11 | Approach angle | ( ° ) | 18 | |
| Passing angle | 18 | |||
| Departure angle | 20 | |||
| 12 | Braking distance(no load/full load) | m | 5.0/6.0 | |
| 13 | Maximum driving slope | % | 18 | |
| 14 | Maximum grade ability | % | 25 | |
| 15 | Motor rated power | kW | 3.7 | |
| 16 | Lowest point on upper surface of passenger seat (H point) | mm | 800 | |
| 17 | Wheel number of shuttle bus | unit | 4 | |
| 18 | Range | km | 80-100 | |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
