Payment & Shipping Terms:
|Transaxle:||Italy Graziano Axle 12:1||Warranty:||1 Year|
|Body Color:||Optional||Chassis:||Aluminum Material|
|Charging Time:||8-10 Hours||Motor:||ADC 48V 3.7KW|
battery operated golf buggy,
golf cart buggy

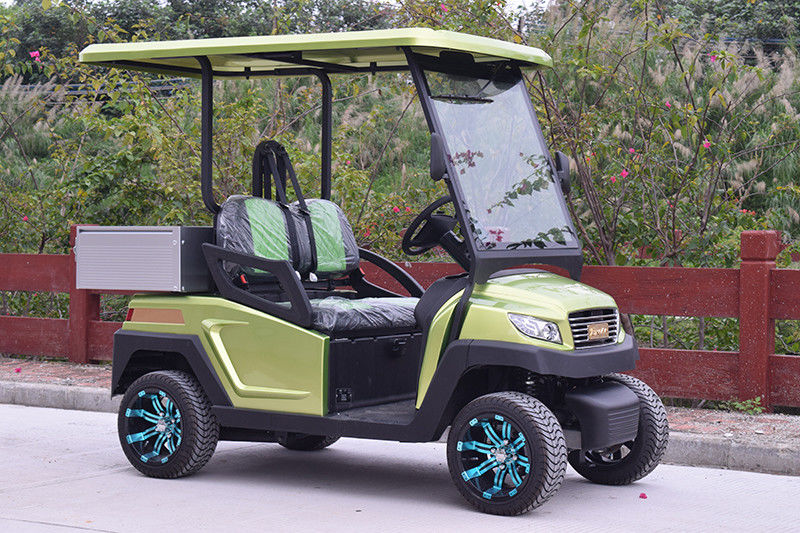

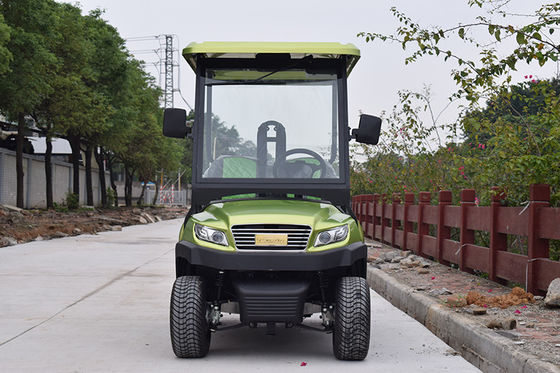

48V Battery Voltage and 1-2 Seats electrical golf cart with CE certificate
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
|Battery||USA Trojan 6*8V T-875|
|Power of Motor||48V 3.7KW ADC Seperately excited motor|
|Controller||USA Curtis Controller 275Ah|
|Accelerator||Adjustable Inductive Accelerator Continuously Variable Speed System|
|Charger||48V 17A Intelligent Onbaord Charger|
|Transaxle||Italy Graziano axle 12:1|
|Front/Rear Suspension||MCPHERSON Independent Spring Suspension|
|Steering System||Dual Self-Adjusting "Rack&Pinion" Steetring|
|Brake System||Rear Self-Adjusting Drum Brake|
|Max Speed||25 km/h||Wheelbase||1670mm|
|Range||80-100km||Front Wheel Tread||900mm|
|Brake Range||≤3m||Rear Wheel Tread||1000mm|
|Max Noise||<50db||Body cover||PP engineering plastic|
|Load Weight||360kgs||Climbing capacity||30%|
|Turning Radius||2.9m||Ground Clearance||124mm|
|※ Italy Graziano Transaxle|
|※ Unique E-KEY|
|※ Electromagnetic Brake Makes Driving More Safty|
|※ Special Design LED Headlight|
|※ Advanced Disc Brake Technology|
|※ Three-point Seat Belts|
|※ Rear View Mirror And Driver/Passenger Side Mirrors|
|※ Automotive Safty Glass Windshield|
|※ Deep Cup Holders|
|※ Comfortable,Contoured Seats|
|※ 100% waterproof accelerator|
Packing & Shipping
|20” container||40” container|
|With roof & windshield||Without roof & windshield||With roof & windshield||Without roof & windshield|
1. Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2. What is your MOQ?
You can order just 1 unit
3. Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4. What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5. What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
6. What's your payment term?
T /T 30% deposit and balance paid before shipment.
Contact Person: Ms. Pauline Liu
