Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE/EEC
Model Number: M1S2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, , L/C, T/T
Supply Ability: 300 units per month
Transaxle: |
Italy Graziano Axle 16:1 |
Warranty: |
1 Year |
Dimension: |
2500*1200*2000mm |
Chassis: |
Aluminum Material |
Max Speed: |
45km/h |
Motor: |
ADC 48V 5KW |
Range: |
65km |
Mass In Running Order: |
440kg |
Tyre: |
215/40R 12, 66N |
Transaxle: |
Italy Graziano Axle 16:1 |
Warranty: |
1 Year |
Dimension: |
2500*1200*2000mm |
Chassis: |
Aluminum Material |
Max Speed: |
45km/h |
Motor: |
ADC 48V 5KW |
Range: |
65km |
Mass In Running Order: |
440kg |
Tyre: |
215/40R 12, 66N |

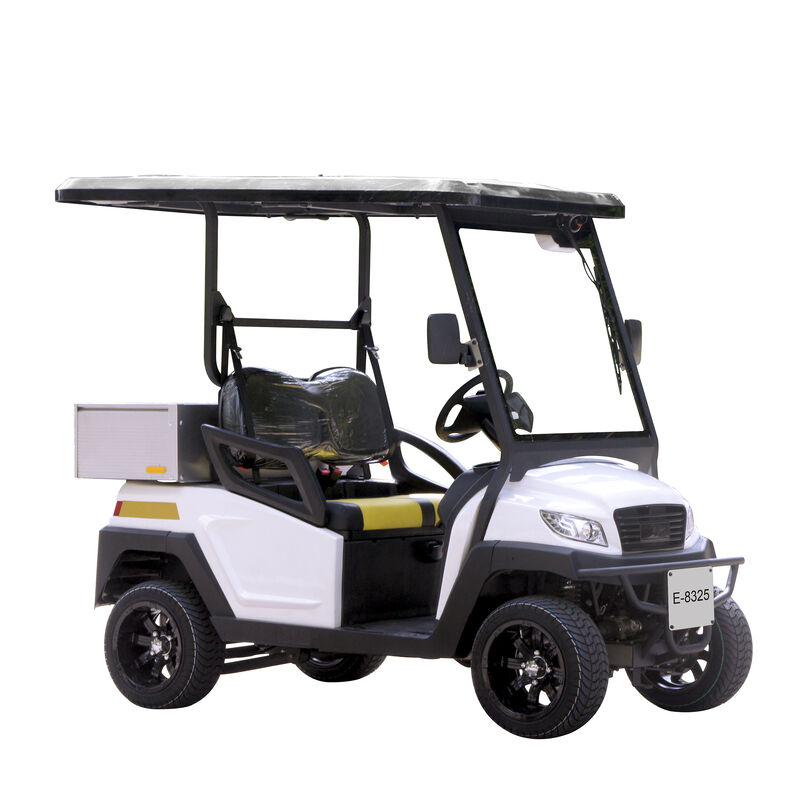

2 seater electric golf cart EEC certificated 48V Battery Powered
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
| Configuration: | |||
| Battery | USA Trojan 6*8V T-875 | ||
| Power of Motor | 48V 5KW ADC Seperately excited motor | ||
| Controller | USA Curtis Controller 350Ah | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Charger | 48V 17A Intelligent Onbaord Charger | ||
| Chassis Configuration: | |||
| Transaxle | Italy Graziano axle 16:1 | ||
| Front/Rear Suspension | MCPHERSON Independent Spring Suspension | ||
| Steering System | Dual Self-Adjusting "Rack&Pinion" Steetring | ||
| Brake System | Rear Self-Adjusting Drum Brake | ||
| Tyre | 215/35-12 Tyre | ||
| Performance | |||
| Passengers | 2 Person | Chassis | Aluminum |
| Max Speed | 25 km/h | Wheelbase | 1670mm |
| Range | 80-100km | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50db | Body cover | PP engineering plastic |
| Net Weight | 430kgs | Dimension | 2700*1200*1900mm |
| Load Weight | 360kgs | Climbing capacity | 30% |
| Turning Radius | 2.9m | Ground Clearance | 124mm |
| Features | |||
| ※ Italy Graziano Transaxle | |||
| ※ Unique E-KEY | |||
| ※ Electromagnetic Brake Makes Driving More Safty | |||
| ※ Special Design LED Headlight | |||
| ※ Advanced Disc Brake Technology | |||
| ※ Three-point Seat Belts | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ Comfortable,Contoured Seats | |||
| ※ 100% waterproof accelerator | |||
Packing & Shipping
| 20” container | 40” container | ||
| With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 4 units | 8units | 10units | 20units |
Color options
Product Image
FAQ
1. Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2. What is your MOQ?
You can order just 1 unit
3. Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4. What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5. What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
6. What's your payment term?
T /T 30% deposit and balance paid before shipment.
