Product Details:
Payment & Shipping Terms:
|
| Transaxle: | Italy Graziano Axle 12:1 | Warranty: | 1 Year |
|---|---|---|---|
| Production Time: | 7-15 Days After Deposit Paid | Body Color: | White Or Based On Panton Number |
| Tyre: | 205/50-10 Tyre | Chassis: | Aluminum Material |
| Pay Load: | 360KG | Motor: | ADC 48V 3.7KW |
| High Light: | golf cart buggy,club car golf buggy |
||

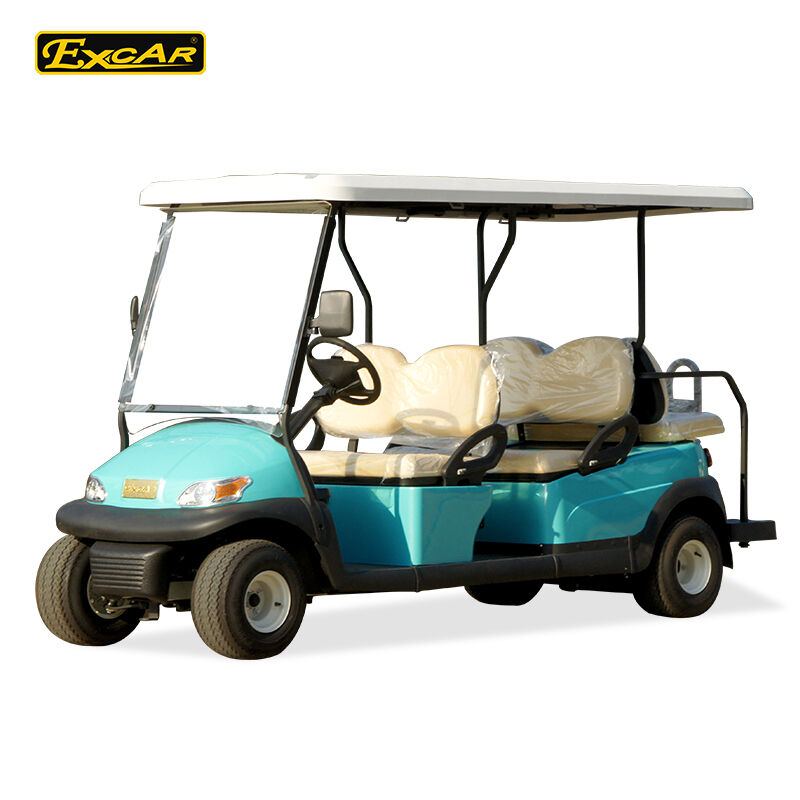

Aluminum Chassis 6 Passenger golf buggy electric club car golf buggy
Basic specification
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
Feather of golf cart:
| Battery | 6*8V 275AH Trojan T-875 | ||
| Power of Motor | 48V 3700W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 25 km/h | Chassis | Aluminum |
| Max Travel Distance | 70-90km | Wheelbase | 2490mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 600KG | Dimension | 3500*1200*1900mm |
| Turning Radius | 2900mm | Passengers | 6 Person |
| Net Weight | 630kg | Ground Clearance | 124mm |
Performance
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
Tag: Electric Golf Car,Electric Golf Carts,Electric Golf Buggy
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
4.We design the full waterproof accelerator,Global special LED system,and only our Excar use 16:1 Italy Graziano axle,so the quality can be gurantee.
