Product Details
Place of Origin: CHINA
Brand Name: EXCAR
Certification: CE
Model Number: lifted CK4+2FF
Document: Excar catalog.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Full assembly or half assembly to load
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 10000 per year

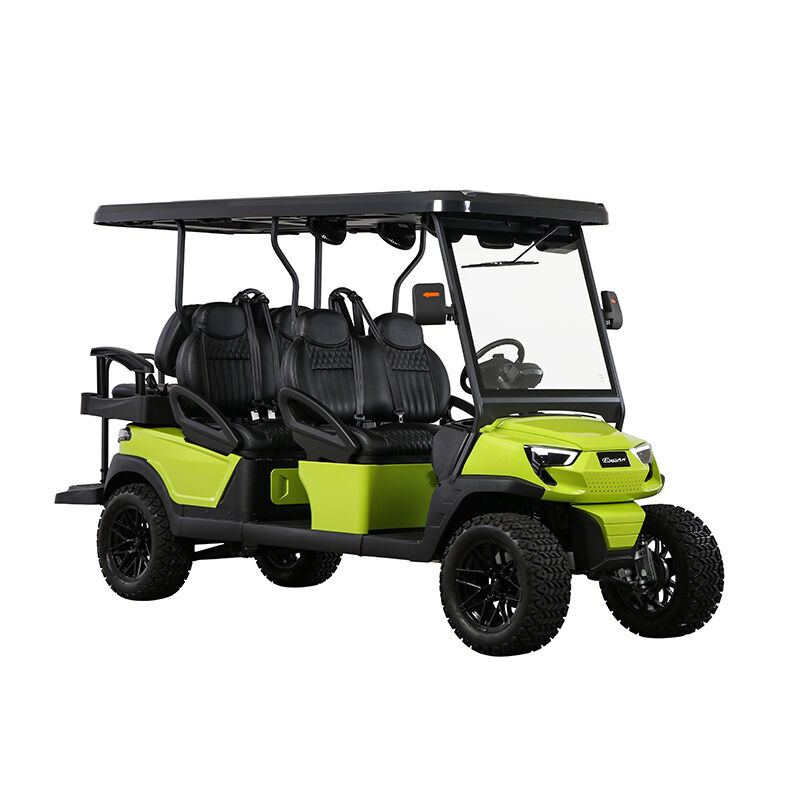

Excar Model:lifted CK4+2FF
| DIMENSION | 3700×1220×2050 MM | PAYLOAD | 510 KG |
| F/R TRACK | 860/970 MM | CIMBING CAPACITY (FULL LOAD) | 30% |
| WHEELBASE | 2490 MM | CHASSIS | ALUMINUM CHASSIS |
| GROUND CLEARANCE | 135 MM | BODY PANEL | PP ENGINEERING PLASTIC |
| MIN. TURNING RADIUS | 6.7 M | MAX. FORWARD SPEED | 40 KM/H |
| NET WEIGHT | 520 KG | RANGE | 60-80KM |
| CONFIGURATION(AC system) | |||
| MOTOR | MOTOR 48V 5KW | BRAKE SYSTEM | REAR SELF-ADJUSTING DRUM BRAKE |
| CONTROLLER | CURTIS 48V 400A | STEERING SYSTEM | DUAL SELF-ADJUSTING RACK & PINION |
| BATTERY | LITHIUM BATTERY/ TROJAN | F/R SUSPENSION | MAPHERSON INDEPENT SPRING SUSPENSION |
| CHARGER | 48V 25A REGULATOR | TYRE | 23*10-14TYRE |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake or Four Wheels Disc Brake;
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the cart to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is about 15 days.
5.What kind of warranty Excar provides?
Usually one year warranty, which is not including the quick-wear parts.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
If you need,we can arrange our technist person to fly to your area and help you solve it.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
Color Options
Rims Options
Seats Options
