Product Details:
Payment & Shipping Terms:
|
| Motor: | ADC 48V 5KW Acim | Controller: | 350A USA Curties |
|---|---|---|---|
| Battery: | 48V Trojan Battery 6*8V | Brand: | EXCAR |
| Tyre: | 205/50-10 Tyre | Pay Load: | Aluminum Chassis |
| Seat: | Soft And Supported By Plastic Board | F/R Track: | 860/ 970 MM |
| Dimension: | 3500*1200*1900 MM | Transaxle: | Italy Graziano Axle |
| High Light: | golf cart buggy,club car golf buggy |
||

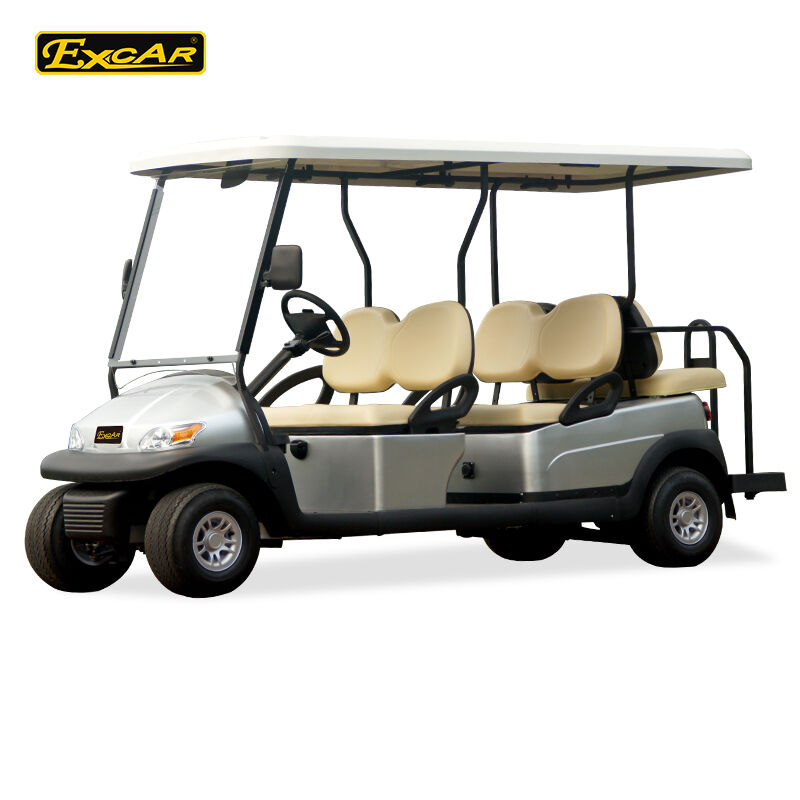

Excar 6 seat Electric golf buggy,48V 3.7KW motor trojan battery golf car
※ Advanced Disc Brake Technology※ Global Special LED Headlight
※ Italy Graziano Transaxle※ Curtis Controller 48V 275A
※ Special Design Battery Tray
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders※ USA Imported Unique E-KEY
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3500x1200x1900mm |
| Ground clearance | 114mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
| Min.turning radius | 3.9m |
| Net weight | 630kg |
| Pay load | 360kg |
| Climbing capacity | 30% |
| Chassis | Steel chassis |
| Body cover | PP engineering plastic |
| Max.forward speed | 24km/h |
| Range | 60-80km |
Configuration
| Item | Description |
| Motor | ADC 48V 3.7KW |
| Controller | 48V 350A curtis controller |
| Battery | T-875 6*8V trojan battery |
| Charger | 48V 17A intelligent offboard charger |
| Item | Description |
| Transaxle |
Italy graziano axle |
| Brake System | Rear self-adjusting drum brake |
| Steering system | Dual self-adjusting rack & pinion |
| F/R suspension | Mcpherson independent spring suspension |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 205/50-10 tyre |
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
