Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: G1S8
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
Toyota 72V 7.5KM ACIM Motor |
Controller: |
Toyota AC Controller 440A |
Batteries: |
Lithium Battery Pack 72V 210Ah |
Charger: |
72V 30A Intelligent Onboard Charger |
Transaxle: |
Heavy Duty Axle With Differential Gear |
Brake System: |
Vacuum Booster Hydraulic Brake |
Steering System: |
EPS(ELECTRIC POWER STEEERING) SYSTEM |
F/R Suspension: |
Mopherson Independent Spring Suspension |
Tyre: |
165/70R13 Tyre |
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
Toyota 72V 7.5KM ACIM Motor |
Controller: |
Toyota AC Controller 440A |
Batteries: |
Lithium Battery Pack 72V 210Ah |
Charger: |
72V 30A Intelligent Onboard Charger |
Transaxle: |
Heavy Duty Axle With Differential Gear |
Brake System: |
Vacuum Booster Hydraulic Brake |
Steering System: |
EPS(ELECTRIC POWER STEEERING) SYSTEM |
F/R Suspension: |
Mopherson Independent Spring Suspension |
Tyre: |
165/70R13 Tyre |

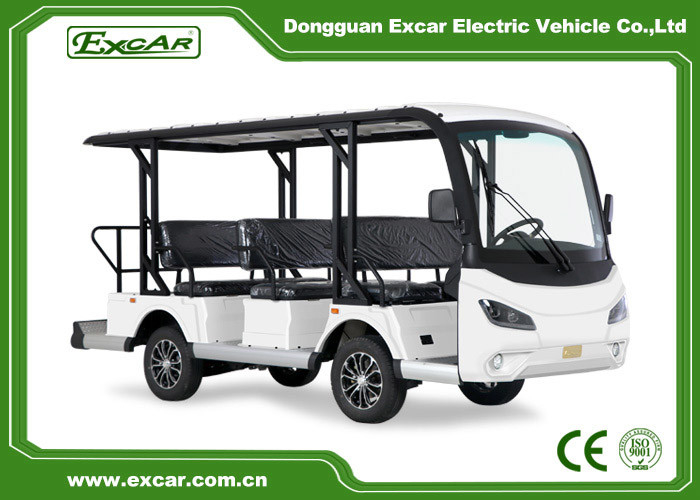

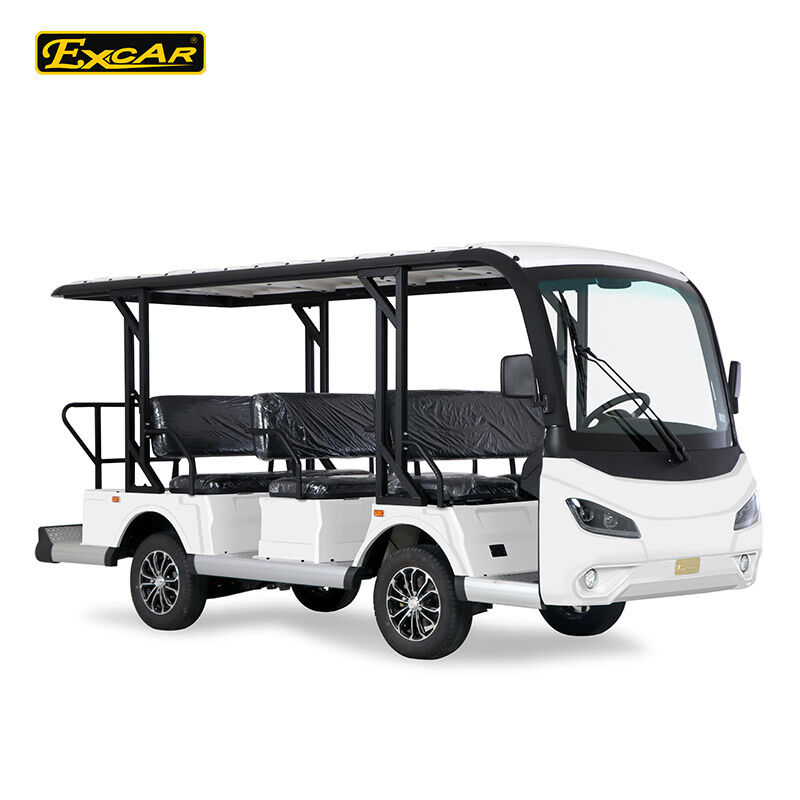

EXCAR G1S8 White 72V 210Ah lithium Battery Powered Vehicle Electric Sightseeing Car
| Item | Description | |
| System | AC system | |
| Motor | Toyota 72V 7.5KM ACIM motor | |
| Controller | Toyota AC controller 440A | |
| Battery | lithium battery pack 72V 210Ah | |
| Charger | 72V 30A Intelligent onboard charger | |
| Transaxle | heavy duty axle with differential gear | |
| Brake system | vacuum booster hydraulic brake | |
| Steering system | EPS(ELECTRIC POWER STEEERING) SYSTEM | |
| F/R suspension | mopherson independent spring suspension | |
| tyre | 165/70R13 tyre | |
Performance
| Item | Description | |
| Number of seat | 8 | |
| Dimension | 4300*1845*1970mm | |
| F/R track | 1210/1200mm | |
| Wheelbase | 1995mm | |
| Ground clearance | 140mm | |
| Min. turning radius | 4.6m | |
| Net wight | 1030KG | |
| Pay load | 850KG | |
| Climbing capacity(full load) | 30% | |
| Chassis | high strength steel alloy frame | |
| Body cover | white coating & powered coating ABS plastic | |
| Max.forward speed | 40 KM/H | |
| Range | 80-100KM | |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 4300x1845x1970mm |
| Ground clearance | 140mm |
| Wheelbase | 1995mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Body and Frame
| Item | Description |
| Frame & Chassis | high strength steel alloy frame |
| Body | white coating & powered coating ABS plastic |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA),one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
12V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
EPS(ELECTRIC POWER STEEERING) SYSTEM |
| Brake System | vacuum booster hydraulic brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel &165/70R13 layers |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 175/70R14 tyre with 14inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
