Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S6+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: Negotiable

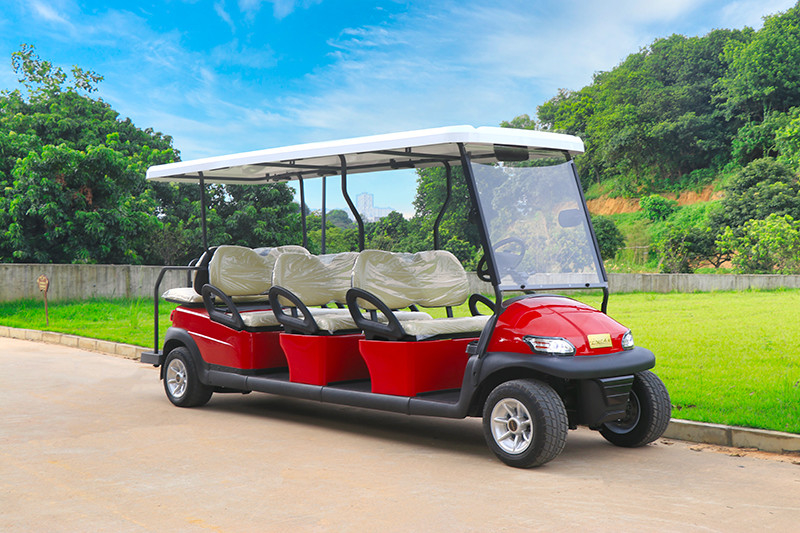

Model: |
A1S6+2 |
Seats:: |
8 Seats |
Color:: |
Customized |
Dimension:: |
4300/1200/1900mm |
Netweight:: |
600KG |
Climbing Capacity:: |
20% |
F/R TRACK:: |
860/970mm |
Battery:: |
Trojan Battery |
Voltage:: |
48V |
Max.Forward Speed:: |
24KM/H |
Ground Clearance:: |
114mm |
Wheelbase:: |
3300mm |
Model: |
A1S6+2 |
Seats:: |
8 Seats |
Color:: |
Customized |
Dimension:: |
4300/1200/1900mm |
Netweight:: |
600KG |
Climbing Capacity:: |
20% |
F/R TRACK:: |
860/970mm |
Battery:: |
Trojan Battery |
Voltage:: |
48V |
Max.Forward Speed:: |
24KM/H |
Ground Clearance:: |
114mm |
Wheelbase:: |
3300mm |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 6+2 | 6+2 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 510kgs | 510kgs |
| Min. turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor | ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Axle with gear ration 1:12 | Axle with gear ration 1:16 |
| Charger | High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Tyre | 215/40R12 tyre |
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
