Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S8+3
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Model: |
A1S8+3 |
Seats:: |
11 Seats |
Battery:: |
Trojan Battery |
Voltage:: |
48V |
Color:: |
Customized |
Dimension:: |
4300/1200/1800mm |
Netweight:: |
600KG |
Climbing Capacity:: |
20% |
Pay Load:: |
500KG |
Max.Forward Speed:: |
24KM/H |
Ground Clearance:: |
114mm |
Range:: |
50-70km |
Model: |
A1S8+3 |
Seats:: |
11 Seats |
Battery:: |
Trojan Battery |
Voltage:: |
48V |
Color:: |
Customized |
Dimension:: |
4300/1200/1800mm |
Netweight:: |
600KG |
Climbing Capacity:: |
20% |
Pay Load:: |
500KG |
Max.Forward Speed:: |
24KM/H |
Ground Clearance:: |
114mm |
Range:: |
50-70km |

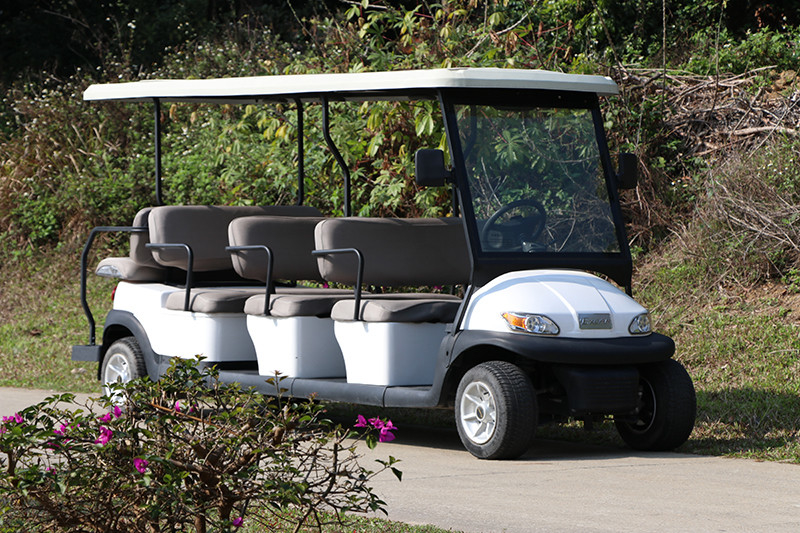

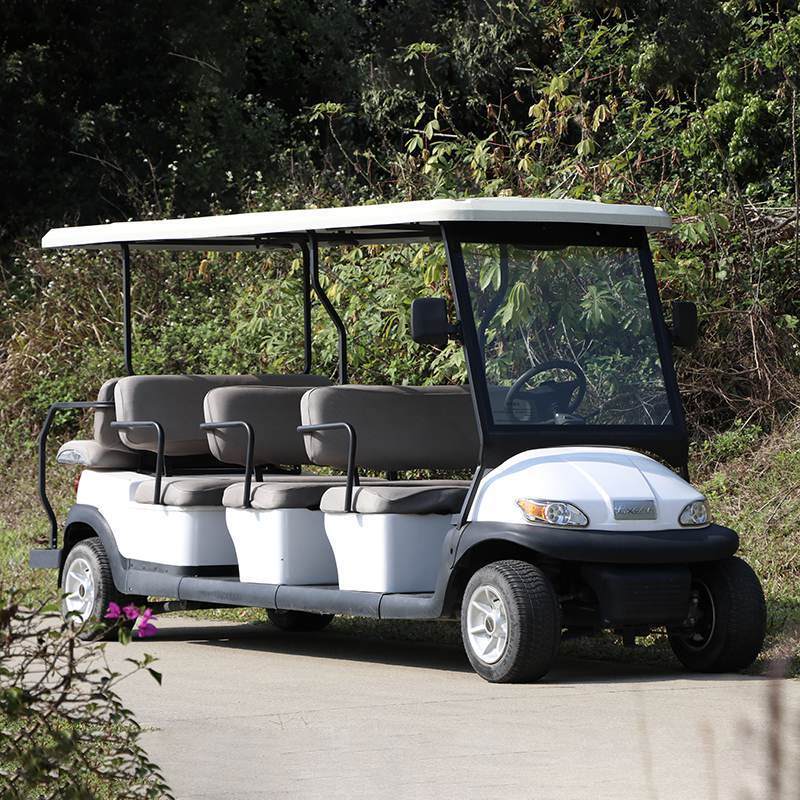

Electric Sightseeing Shuttle Mini Bus For Golf Course, Hotel, Campus, Park, Airport,Tourist Resorts, Museum, Mountain Area,Wedding Place and so on.
Performance
| system | DC system | AC system |
| Passenger Capacity | 11 | 11 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 510kgs | 510kgs |
| Min. turning radius | 5.1m | 5.1m |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
Features
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Special Design Battery Tray
9.Deep Cup Holders
10.Curtis Controller 48V 275A
11.Rear View Mirror And Driver/Passenger Side Mirrors
12.Automotive Safty Glass Windshield
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
