Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H4/LC
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Model:: |
A1H4/LC |
Certification:: |
CE |
Gradeability:: |
20-30% |
Specification::: |
4000*1200*1800MM |
Voltage Of Battery:: |
48V |
Maximum Speed:: |
>30 Km/h |
Model:: |
A1H4/LC |
Certification:: |
CE |
Gradeability:: |
20-30% |
Specification::: |
4000*1200*1800MM |
Voltage Of Battery:: |
48V |
Maximum Speed:: |
>30 Km/h |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 4 | 4 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Configuration
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger | High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film

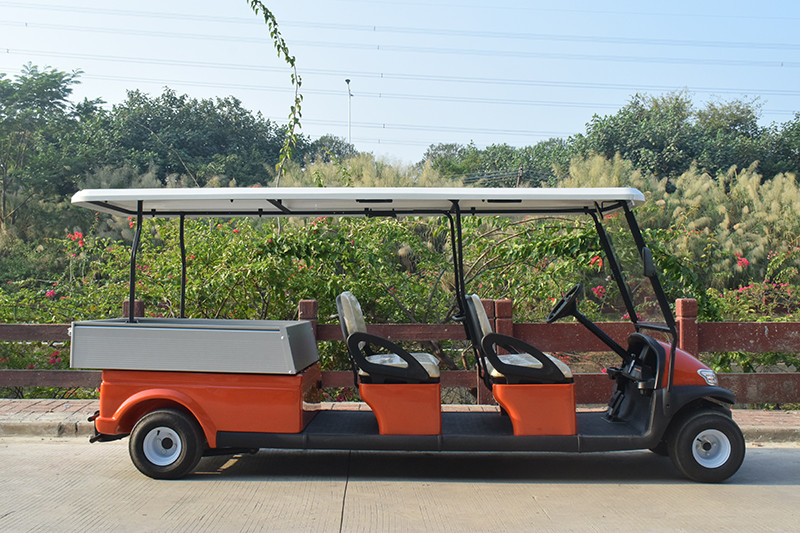

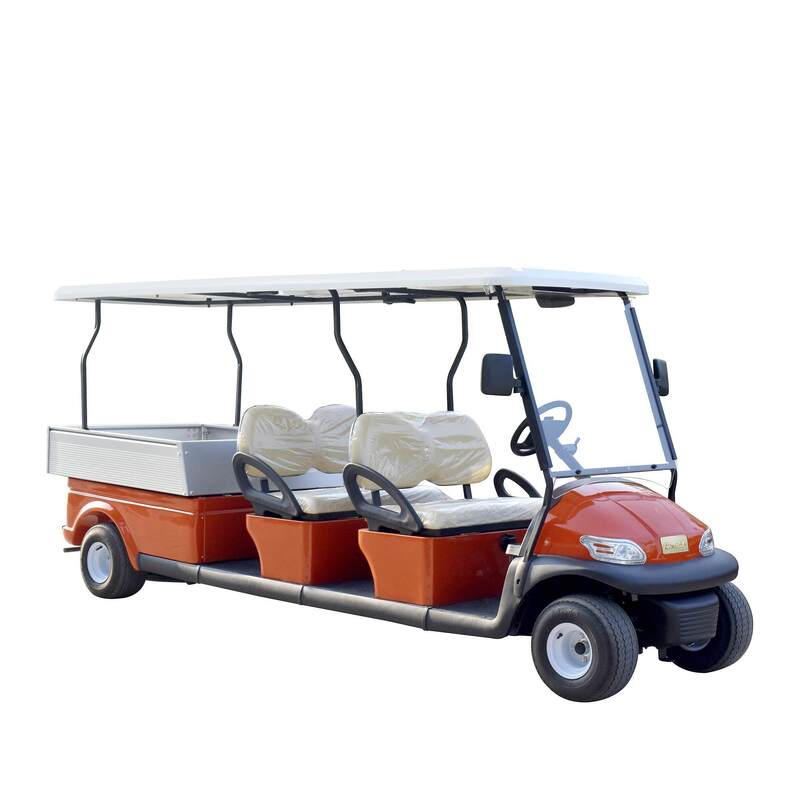

Detailed Photos
Contact details:
Dongguan Excellence Golf & Sightseeing Car Co.,ltd
