Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: M1S2+2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Model: |
M1S2+2 |
Motor: |
48V 5KW Motor |
Full Load: |
30% |
Transaxle: |
Italy Graziano Alex |
Charger: |
Intelligent Onboard Charger |
Controller: |
Curties Controller 48V 275A |
Model: |
M1S2+2 |
Motor: |
48V 5KW Motor |
Full Load: |
30% |
Transaxle: |
Italy Graziano Alex |
Charger: |
Intelligent Onboard Charger |
Controller: |
Curties Controller 48V 275A |
Product Description
| CONFIGURATION | |
| MOTOR: | EXCAR 48V 3.7KW(AC) |
| CONTROLLER: | EXCAR 48V/350A AC CONTROLLER |
| BATTERIES: | 48V |
| CHARGER: | 48V 17A INTELLIGENT ONBOARD CHARGER |
| CHASSIS CONFIGURATION | |
| TRANSAXLE: | SPECIAL REAR AXLE FOR ELECTRIC VEHICLE |
| BRAKE SYSTEM: | REAR SELF-ADJUSTING DRUM BRAKE |
| STEERING STSREM: | DUAL SELF-ADJUSTING RACK & PINION |
| F/R SUSPENSION: | MCPHERSON INDEPENDENT SPRING |
Product Details
|
Power
|
3500W |
| Power Fuel | Electric |
| Maximum Speed | 20-30 km/h |
| Gradeability | 20-30% |
| Certification | CE, ISO, DOT |
| Voltage of Battery | 48V |
| F/R Track | 860/970mm |
| Range | 80-100km |
| Net Weight | 280kg |
| Min Turning Radius | 2.9m |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Options
※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
※ Seat Color:Black or Beige
※ Roof Color:Black,White or Beige

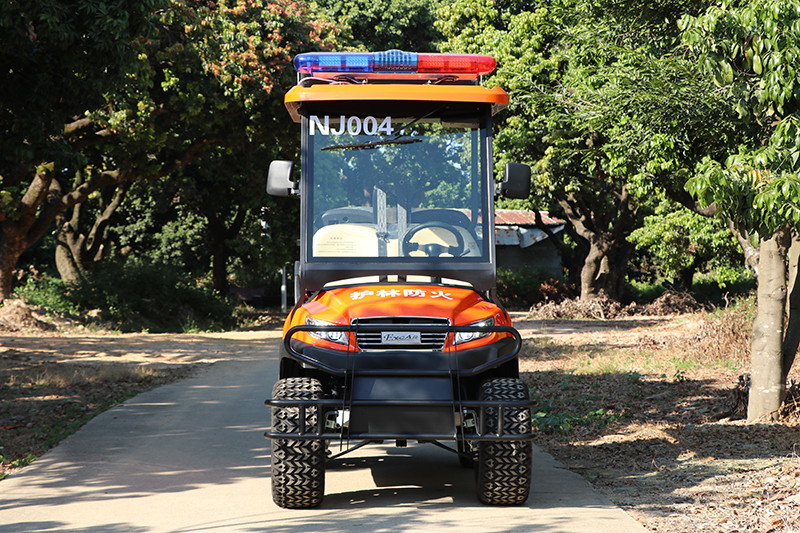

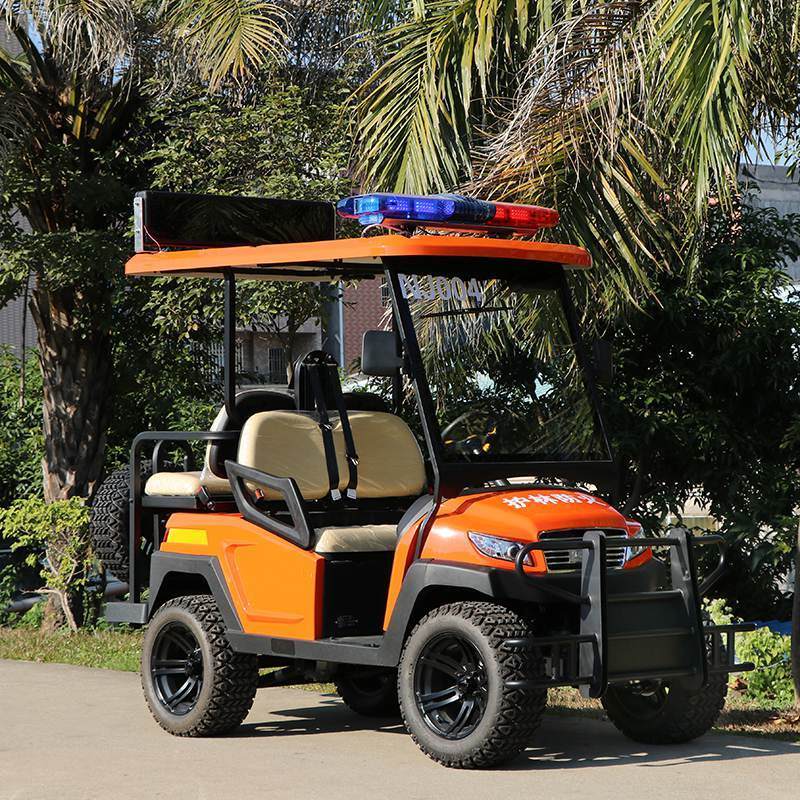

Detailed Photo
FAQ
1. What's your warranty time?
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date
2. What's the production time?
Normally for 7-15 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment
4. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6. What is your MOQ?
You can order just 1 unit .
7. What's your payment term?
T/T 30% deposit and balance paid before shipment
