Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: M1S2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 200 units per month
Framework: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Framework: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |

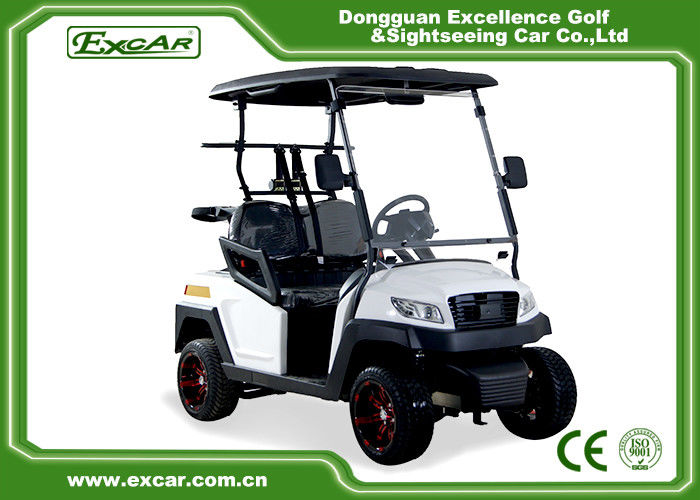

CE certificate 48V Trojan Battery Golf Cart 2 Seater White Colour Electric Golf Carts
Basic specification
| Item | Description |
| Overall dimensions (L x W x H) | 2800x1200x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
