Product Details:
Payment & Shipping Terms:
|
| Chassis: | Aluminium | Body: | All Engineering Plastic |
|---|---|---|---|
| Batteries: | USA Trojan T-875 | Controller: | USA Curtis 275A |
| Motor: | ADC Separately Excited 3.7w | Warranty: | 1 Year |
| High Light: | electric golf club cart,club car golf carts |
||
48V Trojan Battery Mini Electric Golf Cart 4 Passengers ADC Motor 3.7KW Electric Carts
Basic specification
Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.
The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
This type of golf cart is becoming more and more popular, and we're selling very well over the country.
Feather of golf cart:
1.Type sofa chair, comfortable
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Special Design Battery Tray
| Item | Description |
| Overall dimensions (L x W x H) | 3200x1200x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 4 | 4 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options

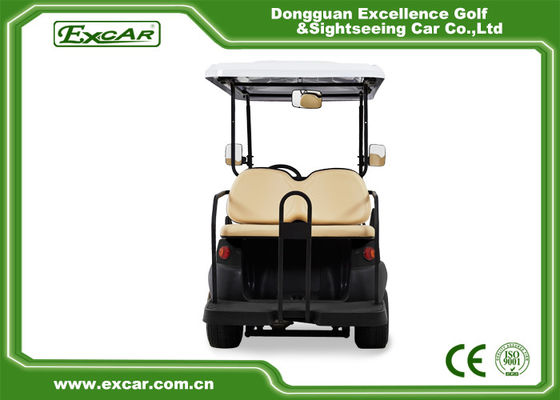

Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
