Payment & Shipping Terms:
|Color:||Light Green Or Customized||Transaxle:||Italy Graziano Axle|
|Batteries:||Lead-acid Wet Batteries USA Trojan T-875||Controller:||USA Curtis Controller 275A 48V|
|Motor:||3.7KW ADC Motor||Warranty:||1 Year Sicne The Day To Ship Out|
|Lead Time:||7-15 Days|
electric golf club cart,
club car golf carts

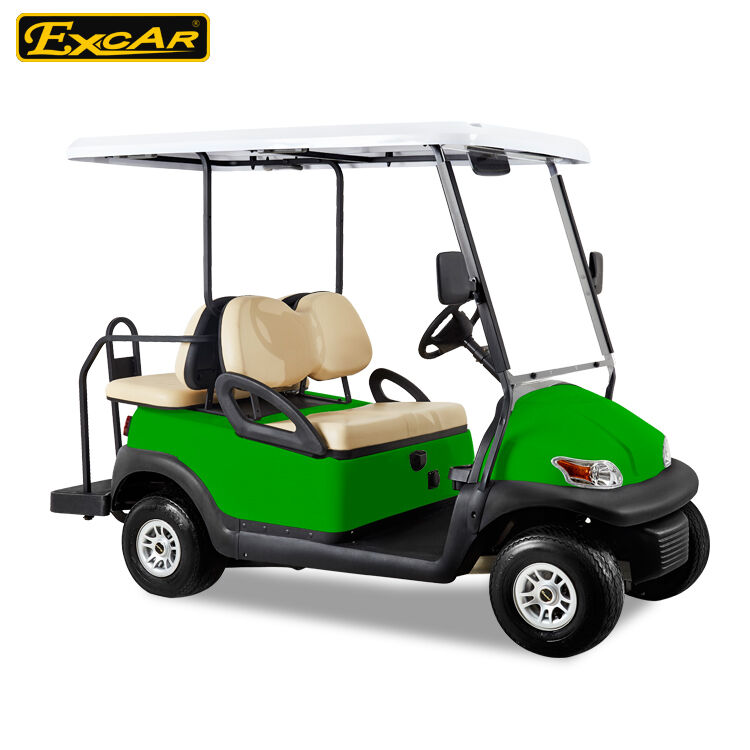

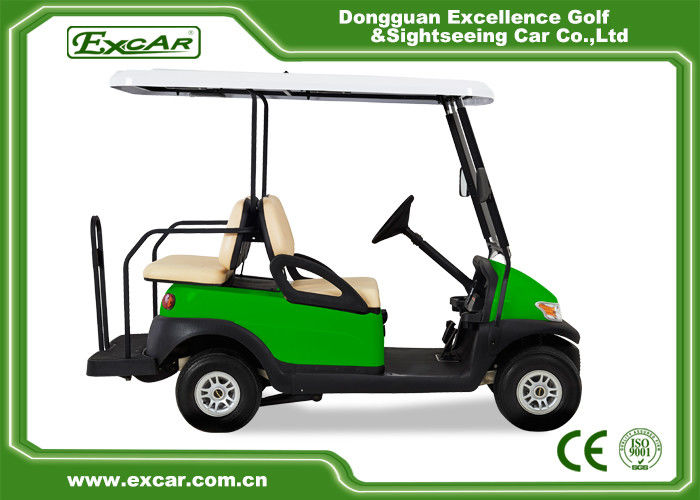

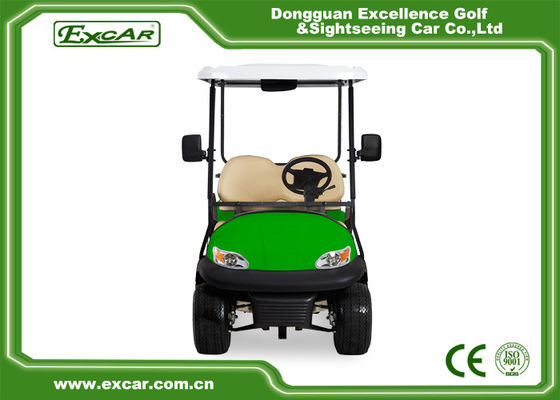

CE Approved 48V Light Green Electric Golf Cart 4 Seaters 3.7KW ADC Motor Electric Golf Carts
Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Rear View Mirror And Driver/Passenger Side Mirrors
8.Special Design Battery Tray
9.Type sofa chair, comfortable
10.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
Feather of golf cart:
|Battery||6*8V 275AH Trojan T-875|
|Power of Motor||48V 3700W|
|Controller||American Curtis Electronics Controller|
|Accelerator||Adjustable Inductive Accelerator Continuously Variable Speed System|
|Transaxle||Italy Graziano axle|
|Charger||Intelligent Onbaord Charger|
|Front-Suspension||Independent Spring Front Suspension|
|Rear-Suspension||Spring Hydraulic Shock Absorbers|
|Steering||Dual Self Adjusting "Rack&Pinion" Steetring|
|Brakes||Rear Wheel Mechanical Drum Brake and Regeneration Brake|
|Max Speed||25 km/h||Chassis||Aluminum|
|Max Travel Distance||70-90km||Wheelbase||2490mm|
|Slope Climbing Capacity||30%||Front Wheel Tread||860mm|
|Brake Range||≤3m||Rear Wheel Tread||970mm|
|Turning Radius||2900mm||Passengers||4 Person|
|Net Weight||430kg||Ground Clearance||124mm|
|system||DC system||AC system|
|Climbing capacity(full load)||20%||25%|
|Max. forward speed||23km/h||45km/h|
|Charging time||8-10 hours||8-10 hours|
|Max. loading weight||300kgs||300kgs|
|Min. turning radius||2.9m||2.9m|
|Max. movement after brake at speed of 20km/h||≤4m||≤4m|
|Item||Option description||Item||Option description|
|2||Hinged windshield||12||Battery water refill system|
|3||Laminated windshield with wiper||13||Digital meter|
|4||Steel brush guard||14||EM brake|
|5||Front steel basket||15||Four wheel disc brake|
|6||Inner rear view mirror||16||Carlisle 205/50-10 tyre with10inch wheel|
|7||Side rear view mirror||17||Ice box|
|9||Sunshine cover||19||Sand rake|
|10||Golf bag cover||20||Ball washer|
※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
※ Seat Color:Black or Beige
※ Roof Color:Black,White or Beige
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
6.What's your payment term?
T/T 30% deposit and balance paid before shipment
* Our excar golf cart can be used in many places,like Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
