Product Details:
Payment & Shipping Terms:
|
| Framework: | Steel | Body: | All Engineering Plastic |
|---|---|---|---|
| Batteries: | Lead-acid Wet Batteries USA Trojan Batteries | Controller: | USA Curtis Controller 48V 275A |
| Front Suspension: | Independent Spring Suspension | Rear Suspension: | Coil Spring Hydraulic Shock Absorber |
| Motor: | ADC Separately Excited 48V 3.7w | Max.speed: | 25km/h Or 45km/h |
| Climbing Capacity: | 20% Or 25% | Charging Time: | 8-10 Hours |
| Windshield: | PC Material | ||
| High Light: | club car golf carts,electric powered golf carts |
||

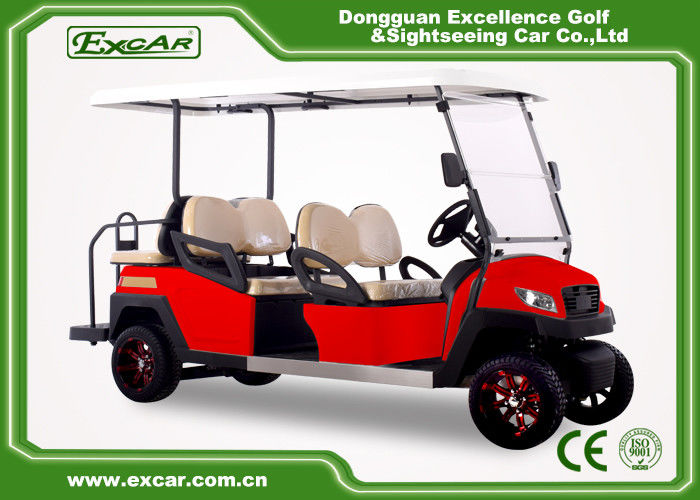

6 seats 350A controller Electric fuel type golf buggy 48 voltage electrical golf car with CE certificated
Basic specification
| Item | Description |
| Brand | Excar |
| Model | M1S4+2 |
| Overall dimensions (L x W x H) | 3500x1200x1800mm |
| Ground clearance | 150mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 3.9m | 3.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Color Options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
| Model | Dimension(mm) | 20” container | 40” container | |||
| M14+2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3500*1200*1800 | 3500*1200*1450 | 2 units | 4units | 6units | 12units | |
