Electric 270A Club Car Electric Hunting Carts

Product Details

Place of Origin: China

Brand Name: EXCAR

Certification: CE

Model Number: M1S2+2FF

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiate

Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.

Delivery Time: 7 days after received your deposit

Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T

Supply Ability: 200 units per month

Get Best Price
Product Details
Highlight:

hunting electric golf carts

,

off road golf carts for hunting

,

270A Electric Hunting Carts

Framework:
Aluminium
Body:
All Engineering Plastic
Batteries:
Lead-acid Wet Batteries USA Trojan Batteries
Controller:
USA Curtis Controller 48V 275A
Steer System:
Self-adjusting Rack & Pinion
Front Suspension:
Independent Spring Suspension
Rear Suspension:
Coil Spring Hydraulic Shock Absorber
Motor:
ADC Separately Excited 48V 3.7w
Charger:
48V 17Ah Onboard Charger
Voltage:
48V
Max.speed:
25km/h Or 45km/h
Climbing Capacity:
20% Or 25%
Endurance:
70-100km
Seat:
Soft And Supported By Plastic Board
Windshield:
PC Material
Framework:
Aluminium
Body:
All Engineering Plastic
Batteries:
Lead-acid Wet Batteries USA Trojan Batteries
Controller:
USA Curtis Controller 48V 275A
Steer System:
Self-adjusting Rack & Pinion
Front Suspension:
Independent Spring Suspension
Rear Suspension:
Coil Spring Hydraulic Shock Absorber
Motor:
ADC Separately Excited 48V 3.7w
Charger:
48V 17Ah Onboard Charger
Voltage:
48V
Max.speed:
25km/h Or 45km/h
Climbing Capacity:
20% Or 25%
Endurance:
70-100km
Seat:
Soft And Supported By Plastic Board
Windshield:
PC Material
Product Description

CE Approved 48V Trojan Battery Hunting Tyre Electric Golf Carts 270A Onboard Charger Golf Cart



Basic specification



Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds



Item Description
Brand Excar
Model M1S2+2FF
Overall dimensions (L x W x H) 3200x1200x1800mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm





Key Components



System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 3kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16

Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator





Performance



system DC system AC system
Passenger Capacity 4 4
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 300kgs 300kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m





Electric System



Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),

Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock







Steering & suspersion



Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function

Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Mcpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving
Wheel & Tyre Aluminum wheel & USA Carlisle 18*8.5-8 6 layers





Option Accessories



Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer





Color Options



Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White





Packing & Shipping



Model Dimension(mm) 20” container 40” container
M1S2+2FF With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
3200*1200*1800 3200*1200*1400 4 units 8units 8units 16units





Poduct Image:

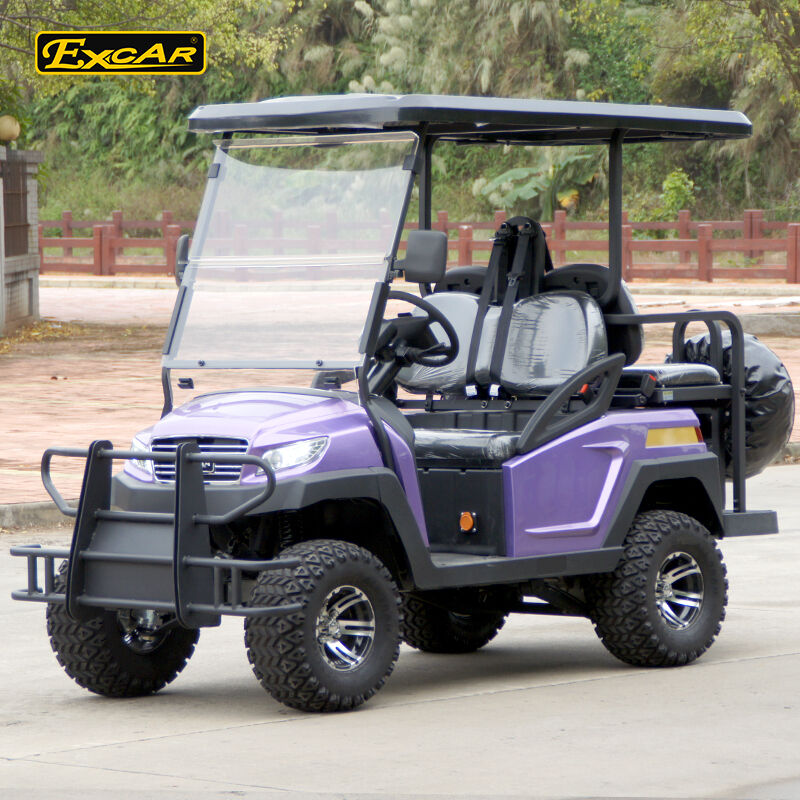

Electric 270A Club Car Electric Hunting Carts 0

Electric 270A Club Car Electric Hunting Carts 1
