Product Details:
Payment & Shipping Terms:
|
| Transaxle: | Italy Graziano Axle 12:1 | Warranty: | 1 Year |
|---|---|---|---|
| Production Time: | 7-15 Days After Deposit Paid | Body Color: | White Or Based On Panton Number |
| Chassis: | Aluminum Material | Wheel & Tyre: | Aluminum Wheel & USA Carlisle 18*8.5-8 6 Layers |
| Charging Time: | 8-10 Hours | Climbing Capacity: | 30% |
| Caution Light: | Knock-Down | ||
| High Light: | electric police car,security golf carts |
||

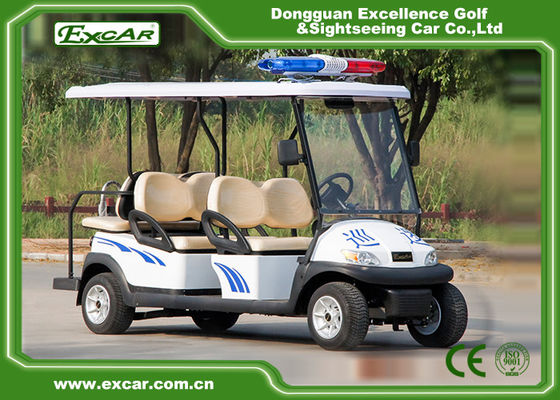

Aluminum 6 passengers White Electric Patrol Car ADC 48V 3.7KW Electric Patrol Car
Basic specification
Electric golf car had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
1. Global Special LED Headlight
2. Efficient Italy graziano driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4.Advanced Disc Brake Technology
5.USA Imported Unique E-KEY
6.100% Waterproof accelerator
7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
8.Option Accessories
| Configuration: | |||
| Battery | USA Trojan 6*8V T-875 | ||
| Power of Motor | 48V 3.7KW ADC Seperately excited motor | ||
| Controller | USA Curtis Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Charger | 48V 17A Intelligent Onbaord Charger | ||
| Chassis Configuration: | |||
| Transaxle | Italy Graziano axle | ||
| Front/Rear Suspension | MCPHERSON Independent Spring Suspension | ||
| Steering System | Dual Self-Adjusting "Rack&Pinion" Steetring | ||
| Brake System | Rear Self-Adjusting Drum Brake | ||
| Tyre | Carlisle 18*8.5-8 6 layers | ||
| Performance | |||
| Passengers | 2 Person | Chassis | Aluminum |
| Max Speed | 25 km/h | Wheelbase | 1670mm |
| Range | 80-100km | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50db | Body cover | PP engineering plastic |
| Net Weight | 430kgs | Dimension | 2700*1200*1900mm |
| Load Weight | 360kgs | Climbing capacity | 30% |
| Turning Radius | 2.9m | Ground Clearance | 124mm |
| Features | |||
| ※ Italy Graziano Transaxle | |||
| ※ Unique E-KEY | |||
| ※ Electromagnetic Brake Makes Driving More Safty | |||
| ※ Special Design LED Headlight | |||
| ※ Advanced Disc Brake Technology | |||
| ※ Three-point Seat Belts | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ Comfortable,Contoured Seats | |||
| ※ 100% waterproof accelerator | |||
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
| 20” container | 40” container | ||
| With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 4 units | 8units | 10units | 20units |
Color options
Product Image
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo carts,maybe need 20 days
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed
